Page 30 - Flipping™ Arch

FLIPPING™ ARCH

Maintenance

Replacement Parts

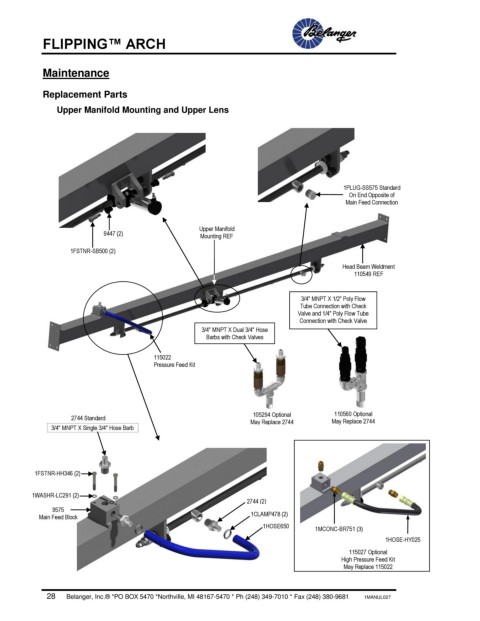

Upper Manifold Mounting and Upper Lens

1PLUG-SS575 Standard
On End Opposite of
Main Feed Connection

Upper Manifold
9447 (2) Mounting REF
1FSTNR-SB500 (2)

Head Beam Weldment
110549 REF

3/4" MNPT X 1/2" Poly Flow
Tube Connection with Check
Valve and 1/4" Poly Flow Tube
Connection with Check Valve
3/4" MNPT X Dual 3/4" Hose
Barbs with Check Valves

115022
Pressure Feed Kit

2744 Standard 105294 Optional 110560 Optional
May Replace 2744 May Replace 2744
3/4" MNPT X Single 3/4" Hose Barb

1FSTNR-HH346 (2)

1WASHR-LC291 (2)
2744 (2)
9575
Main Feed Block 1CLAMP478 (2)
1HOSE650 1MCONC-BR751 (3)
1HOSE-HY025

115027 Optional
High Pressure Feed Kit
May Replace 115022
