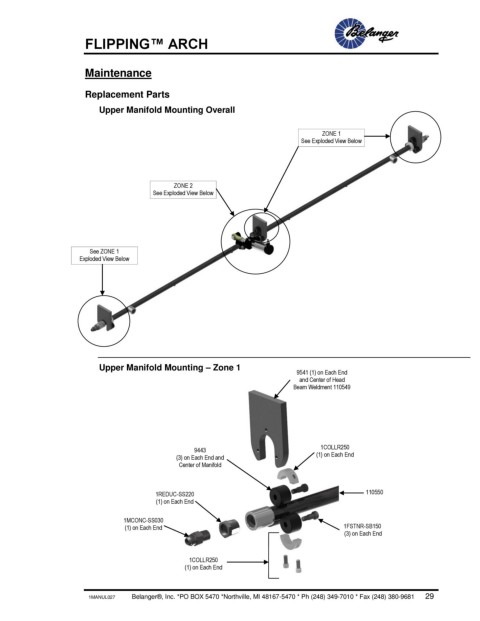

FLIPPING™ ARCH

Maintenance

Replacement Parts

Upper Manifold Mounting Overall

ZONE 1
See Exploded View Below

ZONE 2
See Exploded View Below

See ZONE 1
Exploded View Below

Upper Manifold Mounting – Zone 1
9541 (1) on Each End
and Center of Head
Beam Weldment 110549

1COLLR250
9443
(3) on Each End and (1) on Each End
Center of Manifold

1REDUC-SS220 110550
(1) on Each End

1MCONC-SS030
(1) on Each End 1FSTNR-SB150
(3) on Each End

1COLLR250
(1) on Each End

1MANUL027 Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 29
