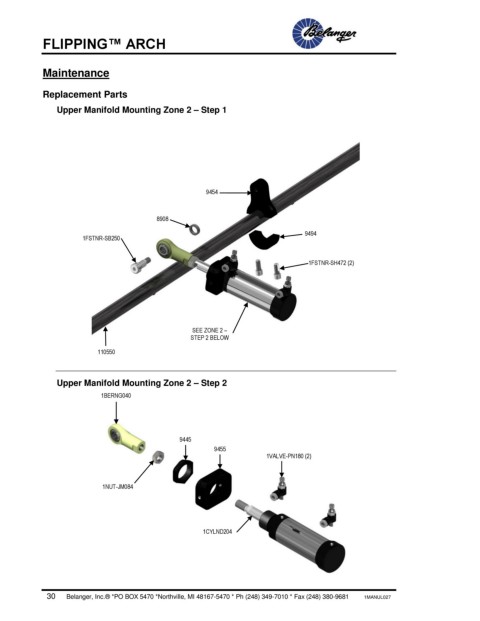

FLIPPING™ ARCH


            Maintenance

            Replacement Parts

               Upper Manifold Mounting Zone 2 – Step 1










                                                      9454


                                         8908

                                                                               9494
                      1FSTNR-SB250

                                                                                1FSTNR-SH472 (2)









                                                  SEE ZONE 2 –
                                                  STEP 2 BELOW

                          110550


               Upper Manifold Mounting Zone 2 – Step 2

                           1BERNG040




                                               9445
                                                        9455
                                                                     1VALVE-PN180 (2)



                           1NUT-JM084





                                                     1CYLND204
