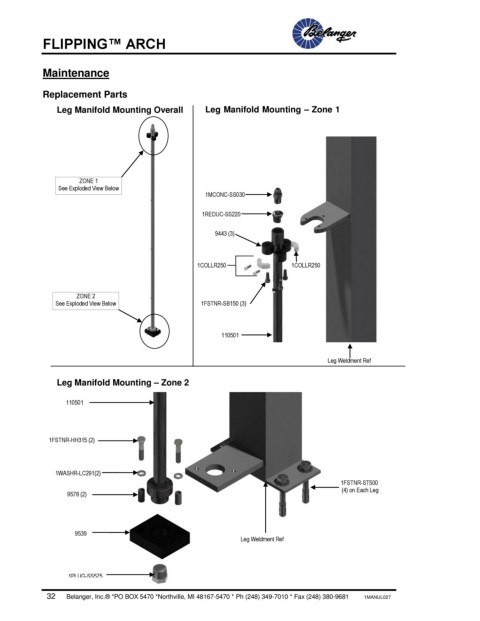

Page 34 - Flipping™ Arch
P. 34

FLIPPING™ ARCH


            Maintenance

            Replacement Parts


               Leg Manifold Mounting Overall         Leg Manifold Mounting – Zone 1








                     ZONE 1
                See Exploded View Below
                                                     1MCONC-SS030


                                                    1REDUC-SS220

                                                        9443 (3)



                                                   1COLLR250               1COLLR250



                    ZONE 2
               See Exploded View Below              1FSTNR-SB150 (3)



                                                         110501


                                                                                     Leg Weldment Ref

               Leg Manifold Mounting – Zone 2


                  110501




             1FSTNR-HH315 (2)



               1WASHR-LC291(2)
                                                                                        1FSTNR-ST500
                                                                                         (4) on Each Leg
                  9578 (2)



                    9539
                                                              Leg Weldment Ref




                  1PLUG-SS575

             32     Belanger, Inc.® *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681       1MANUL027
