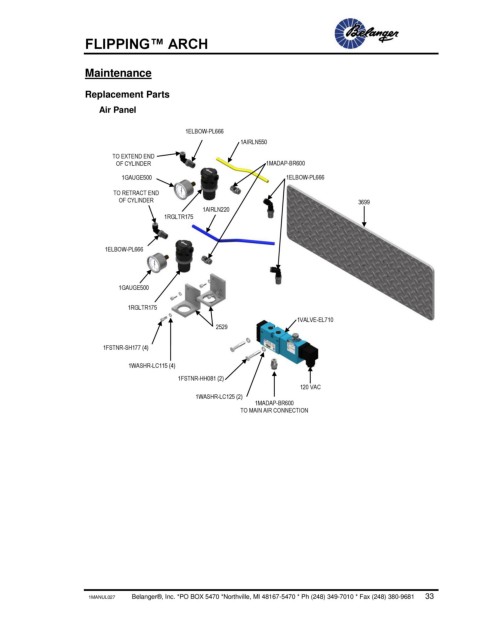

FLIPPING™ ARCH


                       Maintenance

                       Replacement Parts

                          Air Panel

                                                1ELBOW-PL666
                                                              1AIRLN550
                              TO EXTEND END
                               OF CYLINDER                           1MADAP-BR600
                                1GAUGE500                                 1ELBOW-PL666
                              TO RETRACT END
                               OF CYLINDER                                                  3699
                                                     1AIRLN220
                                           1RGLTR175



                            1ELBOW-PL666




                               1GAUGE500

                                  1RGLTR175
                                                                             1VALVE-EL710
                                                        2529

                           1FSTNR-SH177 (4)

                                  1WASHR-LC115 (4)
                                              1FSTNR-HH081 (2)
                                                                              120 VAC
                                                   1WASHR-LC125 (2)
                                                                  1MADAP-BR600
                                                              TO MAIN AIR CONNECTION


























                       1MANUL027          Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681     33
