FLIPPING™ ARCH
Maintenance
Replacement Parts

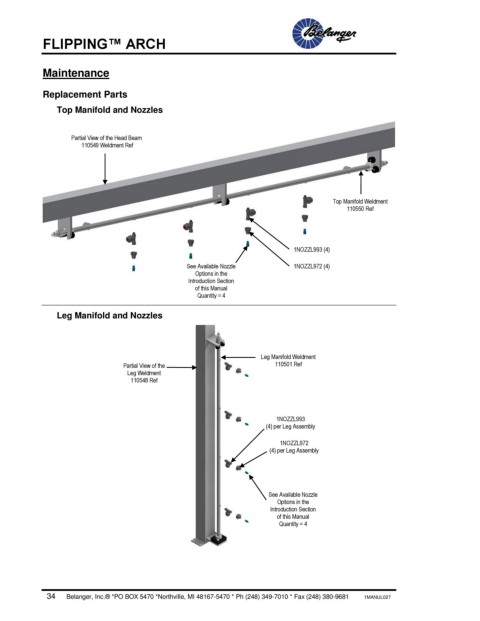

Top Manifold and Nozzles
Partial View of the Head Beam
110549 Weldment Ref
Top Manifold Weldment
110550 Ref
1NOZZL993 (4)
See Available Nozzle 1NOZZL972 (4)
Options in the
Introduction Section
of this Manual
Quantity = 4
Leg Manifold and Nozzles
Leg Manifold Weldment
Partial View of the 110501 Ref
Leg Weldment
110548 Ref
1NOZZL993
(4) per Leg Assembly
1NOZZL972
(4) per Leg Assembly
See Available Nozzle
Options in the
Introduction Section
of this Manual
Quantity = 4
