P. 37

FLIPPING™ ARCH


                       Maintenance

                       Replacement Parts

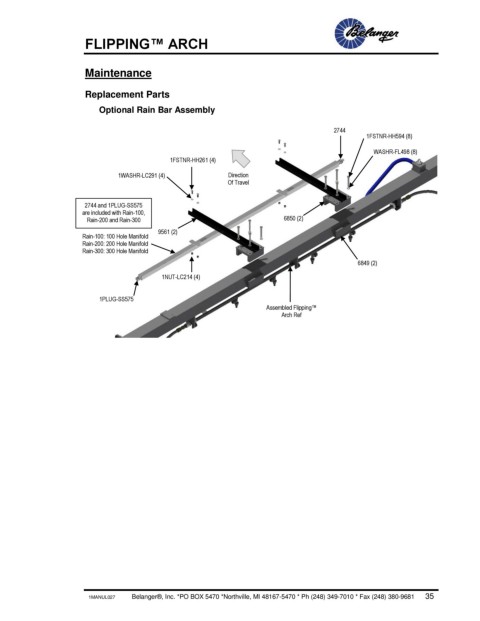

                          Optional Rain Bar Assembly

                                                                                      2744
                                                                                              1FSTNR-HH594 (8)

                                                                                                WASHR-FL498 (8)
                                            1FSTNR-HH261 (4)
                               1WASHR-LC291 (4)            Direction
                                                           Of Travel


                       2744 and 1PLUG-SS575
                      are included with Rain-100,
                       Rain-200 and Rain-300                             6850 (2)
                                         9561 (2)
                      Rain-100: 100 Hole Manifold
                      Rain-200: 200 Hole Manifold
                      Rain-300: 300 Hole Manifold
                                                                                            6849 (2)

                                          1NUT-LC214 (4)

                          1PLUG-SS575
                                                                     Assembled Flipping™
                                                                         Arch Ref



































                       1MANUL027          Belanger®, Inc. *PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681     35
