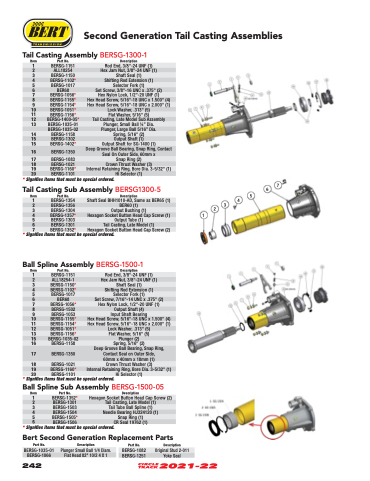

Second Generation Tail Casting Assemblies Tail Casting Assembly BERSG-1300-1
Item Part No. Description
1
BERSG-1151
Rod End, 3/8"-24 UNF (1)
2
ALL18254
Hex Jam Nut, 3/8"-24 UNF (1)
3
BERSG-1150
Shaft Seal (1)
4
BERSG-1102*
Shifting Rod Extension (1)
5
BERSG-1017
Selector Fork (1)
6
BER68
Set Screw, 3/8"-16 UNC x .375" (2)
7
BERSG-1056*
Hex Nylon Lock, 1/2"-20 UNF (1)
8
BERSG-1155*
Hex Head Screw, 5/16"-18 UNC x 1.500" (4)
9
BERSG-1154*
Hex Head Screw, 5/16"-18 UNC x 2.000" (1)
10
BERSG-1051*
Lock Washer, .313" (5)
11
BERSG-1156*
Flat Washer, 5/16" (5)
12
BERSG-1400-05*
Tail Casting, Late Model Sub Assembly
13
BERSG-1035-01
Plunger, Small Ball 1⁄4” Dia.
BERSG-1035-02
Plunger, Large Ball 5/16” Dia.
14
BERSG-1158
Spring, 5/16" (2)
15
BERSG-1302
Output Shaft (1)
15
BERSG-1402*
Output Shaft for SG-1400 (1)
16
BERSG-1350
Deep Groove Ball Bearing, Snap Ring, Contact Seal On Outer Side, 60mm x
17
BERSG-1083
Snap Ring (2)
18
BERSG-1021
Crown Thrust Washer (3)
19
BERSG-1160*
Internal Retaining Ring, Bore Dia. 3-5/32" (1)
20
BERSG-1101
Hi Selector (1)
3 2
1
5 4
7 6
* Signifies items that must be special ordered.
Tail Casting Sub Assembly BERSG1300-5
Item Part No. Description
* Signifies items that must be special ordered.
Ball Spline Assembly BERSG-1500-1 Item Part No. Description
1
BERSG-1354
Shaft Seal BHH1010-AD, Same as BER65 (1)
2
BERSG-1356
BER60 (1)
3
BERSG-1304
Output Bushing (1)
4
BERSG-1357*
Hexagon Socket Button Head Cap Screw (1)
5
BERSG-1303
Output Tube (1)
6
BERSG-1301
Tail Casting, Late Model (1)
7
BERSG-1352*
Hexagon Socket Button Head Cap Screw (2)
1
BERSG-1151
Rod End, 3/8"-24 UNF (1)
2
ALL18254-1
Hex Jam Nut, 3/8"-24 UNF (1)
3
BERSG-1150*
Shaft Seal (1)
4
BERSG-1102*
Shifting Rod Extension (1)
5
BERSG-1017
Selector Fork (1)
6
BER68
Set Screw, 7/16"-14 UNC x .375" (2)
7
BERSG-1056*
Hex Nylon Lock, 1/2"-20 UNF (1)
8
BERSG-1502
Output Shaft (4)
9
BERSG-1053
Input Shaft Bearing
10
BERSG-1155*
Hex Head Screw, 5/16"-18 UNC x 1.500" (4)
11
BERSG-1154*
Hex Head Screw, 5/16"-18 UNC x 2.000" (1)
12
BERSG-1051*
Lock Washer, .313" (5)
13
BERSG-1156*
Flat Washer, 5/16" (5)
15
BERSG-1035-02
Plunger (2)
16
BERSG-1158
Spring, 5/16" (2)
17
BERSG-1350
Deep Groove Ball Bearing, Snap Ring, Contact Seal on Outer Side, 60mm x 40mm x 18mm (1)
18
BERSG-1021
Crown Thrust Washer (3)
19
BERSG-1160*
Internal Retaining Ring, Bore Dia. 3-5/32" (1)
20
BERSG-1101
Hi Selector (1)
* Signifies items that must be special ordered.
Ball Spline Sub Assembly BERSG-1500-05
Item Part No. Description
* Signifies items that must be special ordered.
Bert Second Generation Replacement Parts
1
BERSG-1352*
Hexagon Socket Button Head Cap Screw (2)
2
BERSG-1301
Tail Casting, Late Model (1)
3
BERSG-1503
Tail Tube Ball Spline (1)
4
BERSG-1504
Needle Bearing HJ324120 (1)
5
BERSG-1505*
Snap Ring (1)
6
BERSG-1506
CR Seal 19762 (1)
Part No.
BERSG-1035-01 BERSG-1066
Description
Plunger Small Ball 1/4 Diam. Flat Head 82° 10/2 4 X 1
Part No.
BERSG-1082 BERSG-1251
Description
Original Stud 2-011 Yoke Seal
