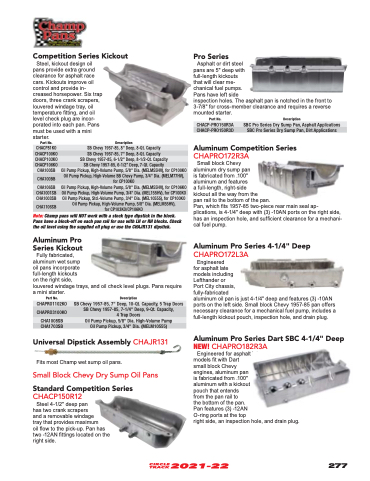

Page 279 - 2021-22 Auto Performance_Circle Track
P. 279
Competition Series Kickout
Pro Series
Asphalt or dirt steel
pans are 5" deep with
full-length kickouts
that will clear me-
chanical fuel pumps.
Pans have left side
inspection holes. The asphalt pan is notched in the front to mounted starter.
Steel, kickout design oil pans provide extra ground clearance for asphalt race control and provide in- creased horsepower. Six trap doors, three crank scrapers, louvered windage tray, oil level check plug are incor- porated into each pan. Pans must be used with a mini starter.
Part No.
Part No.
Description
CHACP-PRO150R3A
SBC Pro Series Dry Sump Pan, Asphalt Applications
CHACP-PRO150R3D
SBC Pro Series Dry Sump Pan, Dirt Applications
Description
Aluminum Competition Series
CHAPRO172R3A
aluminum dry sump pan
aluminum and features
a full-length, right-side
kickout all the way from the
pan rail to the bottom of the pan.
- - cal fuel pump.
Aluminum Pro Series 4-1/4" Deep
CHAPRO172L3A
Engineered
for asphalt late
models including
Lefthander or
fully-fabricated
necessary clearance for a mechanical fuel pump, includes a full-length kickout pouch, inspection hole, and drain plug.
Aluminum Pro Series Dart SBC 4-1/4" Deep
NEW! CHAPRO182R3A Engineered for asphalt late
engines, aluminum pan aluminum with a kickout pouch that entends from the pan rail to
the bottom of the pan.
O-ring ports at the top
right side, an inspection hole, and drain plug.
CIRCLE 2021-22 277 TRACK
CHACP81KO
SB Chevy 1957-85, 8" Deep, 8-Qt. Capacity
CHACP100KO
SB Chevy 1957-85, 7" Deep, 8-Qt. Capacity
CHACP103KO
SB Chevy 1957-85, 6-1/2" Deep, 8-1/2-Qt. Capacity
CHACP106KO
SB Chevy 1957-85, 6-1/2” Deep, 7-Qt. Capacity
CHA100SB
Oil Pump Pickup, High-Volume Pump, 5/8" Dia. (MELM55HV), for CP100KO
CHA100BB
Oil Pump Pickup, High-Volume BB Chevy Pump, 3/4" Dia. (MELM77HV), for CP100KO
CHA106SB
Oil Pump Pickup, High-Volume Pump, 5/8" Dia. (MELM55HV), for CP106KO
CHA1001SB
Oil Pump Pickup, High-Volume Pump, 3/4" Dia. (MEL155HV), for CP100KO
CHA1003SB
Oil Pump Pickup, Std.-Volume Pump, 3/4" Dia. (MEL10555), for CP100KO
CHA1106SB
Oil Pump Pickup, High-Volume Pump, 5/8" Dia. (MELM55HV), for CP103KO/CP106KO
Note: Champ pans will NOT work with a stock type dipstick in the block. Pans have a block-off on each pan rail for use with LH or RH blocks. Check the oil level using the supplied oil plug or use the CHAJR131 dipstick.
Aluminum Pro Series Kickout
aluminum wet sump
oil pans incorporate
full-length kickouts
on the right side,
louvered windage trays, and oil check level plugs. Pans require a mini starter.
Part No.
Description
CHAPRO1102KO
SB Chevy 1957-85, 7" Deep, 10-Qt. Capacity, 5 Trap Doors
CHAPRO3100KO
SB Chevy 1957-85, 7-1/4" Deep, 9-Qt. Capacity, 4 Trap Doors
CHA1008SB
Oil Pump Pickup, 5/8" Dia. High-Volume Pump
CHA1703SB
Oil Pump Pickup, 3/4" Dia. (MELM10555)
Universal Dipstick Assembly CHAJR131
Small Block Chevy Dry Sump Oil Pans
Standard Competition Series
CHACP150R12
Steel 4-1/2" deep pan
has two crank scrapers
and a removable windage
tray that provides maximum
right side.
