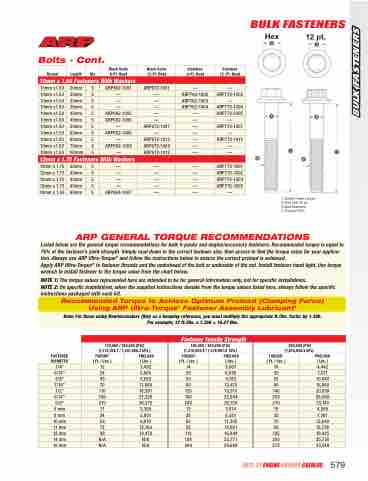

Page 581 - 2021-22_EngineCatalogAP

Bolts - Cont.
BULK FASTENERS
Hex
12 pt.
Thread
Length
Qty
Black Oxide 6-Pt. Head
Black Oxide 12-Pt. Head
Stainless 6-Pt. Head
Stainless 12 -Pt. Head
10mm x 1.50 Fasteners With Washers
10mm x1.50
20mm
5
ARP662-1001
ARP672-1001
—
—
10mm x1.50
25mm
5
—
—
ARP762-1002
ARP772-1002
10mm x1.50
30mm
5
—
—
ARP762-1003
—
10mm x1.50
35mm
5
—
—
ARP762-1004
ARP772-1004
10mm x1.50
40mm
5
ARP662-1005
—
—
ARP772-1005
10mm x1.50
45mm
5
ARP662-1006
—
—
—
10mm x1.50
50mm
5
—
ARP672-1007
—
ARP772-1007
10mm x1.50
60mm
5
ARP662-1008
—
—
—
10mm x1.50
65mm
5
—
ARP672-1013
—
ARP772-1013
10mm x1.50
70mm
5
ARP662-1009
ARP672-1009
—
—
10mm x1.50
100mm
5
—
ARP672-1012
—
—
12mm x 1.75 Fasteners With Washers
12mm x 1.75
25mm
5
—
—
—
ARP775-1001
12mm x 1.75
30mm
5
—
—
—
ARP775-1002
12mm x 1.75
40mm
5
—
—
—
ARP775-1004
12mm x 1.75
45mm
5
—
—
—
ARP775-1005
12mm x 1.50
60mm
5
ARP664-1007
—
—
—
ARP GENERAL TORQUE RECOMMENDATIONS
Listed below are the general torque recommendations for bulk 5-packs and engine/accessory fasteners. Recommended torque is equal to 75% of the fastener’s yield strength. Simply read down to the correct fastener size, then across to find the torque value for your applica- tion. Always use ARP Ultra-Torque® and follow the instructions below to ensure the correct preload is achieved.
Apply ARP Ultra-Torque® to fastener threads and the underhead of the bolt or underside of the nut. Install fastener hand tight. Use torque wrench to install fastener to the torque value from the chart below.
NOTE 1: The torque values represented here are intended to be for general information only, not for specific installations.
NOTE 2: On specific installations, when the supplied instructions deviate from the torque values listed here, always follow the specific instructions packaged with each kit.
Recommended Torque to Achieve Optimum Preload (Clamping Force) Using ARP Ultra-Torque® Fastener Assembly Lubricant*
Note: For those using Newton/meters (Nm) as a torquing reference, you must multiply the appropriate ft./lbs. factor by 1.356. For example, 12 ft./lbs. x 1.356 = 16.27 Nm.
FASTENER DIAMETER
1-Under Head Length 2-Hex and 12 pt. 3-Bolt Diameter 4-Thread Pitch
Fastener Tensile Strength
170,000 / 180,000 (PSI) (1,172,108.7 / 1,241,056.3 kPa )
190,000 / 200,000 (PSI) (1,310,003.9 / 1,378,951.5 kPa )
220,000 (PSI) (1,516,846.6 kPa)
TORQUE* ( Ft. / Lbs. )
PRELOAD (Lbs.)
TORQUE* ( Ft. / Lbs. )
PRELOAD ( Lbs. )
TORQUE* ( Ft. / Lbs. )
1/4"
12
3,492
14
3,967
16
4,442
5/16"
24
5,805
28
6,588
32
7,371
3/8"
45
8,622
50
9,782
55
10,942
7/16"
70
11,880
80
13,470
90
15,060
110
125
2021-22 ENGINE BUILDER CATALOG 579
PRELOAD (Lbs.)
1/2"
16,391
18,515
140
20,639
9/16"
160
21,220
180
23,944
200
26,668
5/8"
210
26,372
240
29,756
270
15
33,140
6 mm
11
3,359
13
3,814
4,269
8 mm
24
5,801
28
6,581
32
7,361
10 mm
54
9,970
62
11,305
70
12,640
11 mm
72
12,184
82
13,961
92
15,738
12 mm
98
14,472
112
16,949
125
19,425
14 mm
N/A
N/A
184
22,771
205
25,730
16 mm
N/A
N/A
244
29,664
272
33,519
