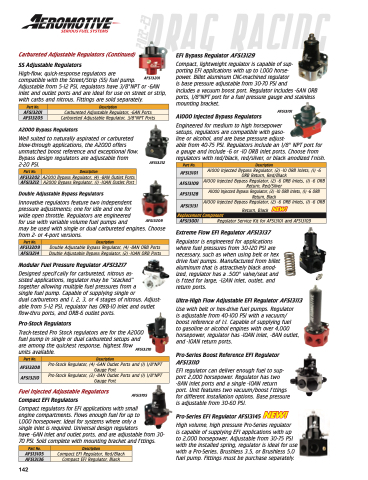

Page 144 - 2022-23 Auto Performance Drag Racing

Carbureted Adjustable Regulators (Continued)
SS Adjustable Regulators
DRAG RACING
EFI Bypass Regulator AFS13129
Compact, lightweight regulator is capable of sup-
porting EFI applications with up to 1,000 horse-
power. Billet aluminum CNC-machined regulator
is base pressure adjustable from 30-70 PSI and
includes a vacuum boost port. Regulator includes -6AN ORB ports, 1/8"NPT port for a fuel pressure gauge and stainless mounting bracket.
A1000 Injected Bypass Regulators AFS13101
Engineered for medium to high horsepower
setups, regulators are compatible with gaso-
line or alcohol, and are base pressure adjust-
able from 40-75 PSI. Regulators include an 1/8" NPT port for a gauge and include -6 or -10 ORB inlet ports. Choose from regulators with red/black, red/silver, or black anodized f nish.
High-flow, quick-response regulators are
compatible with the Street/Strip (SS) fuel pump.
Adjustable from 5-12 PSI, regulators have 3/8"NPT or -6AN inlet and outlet ports and are ideal for use on street or strip, with carbs and nitrous. Fittings are sold separately.
AFS13201
Part No. Description A2000 Bypass Regulators
Well suited to naturally aspirated or carbureted blow-through applications, the A2000 offers unmatched boost reference and exceptional flow. Bypass design regulators are adjustable from 2-20 PSI.
Part No. Description Double Adjustable Bypass Regulators
AFS13212
Part No.
Replacement Component
Description
AFS13201
Carbureted Adjustable Regulator, -6AN Ports
AFS13205
Carbureted Adjustable Regulator, 3/8"NPT Ports
AFS13101
A1000 Injected Bypass Regulator, (2) -10 ORB Inlets, (1) -6 ORB Return, Red/Black
AFS13109
A1000 Injected Bypass Regulator, (2) -6 ORB Inlets, (1) -6 ORB Return, Red/Silver
AFS13128
A1000 Injected Bypass Regulator, (2) -10 ORB Inlets, (1) -6 ORB Return, Black
AFS13131
A1000 Injected Bypass Regulator, (2) -6 ORB Inlets, (1) -6 ORB Return, Black NEW!
AFS13202
A2000 Bypass Regulator, (4) -8AN Outlet Ports
AFS13212
A2000 Bypass Regulator, (1) -10AN Outlet Port
Innovative regulators feature two independent
pressure adjustments; one for idle and one for
wide open throttle. Regulators are engineered
for use with variable volume fuel pumps and
may be used with single or dual carbureted engines. Choose from 2- or 4-port versions.
AFS13209
Designed specif cally for carbureted, nitrous as-
sisted applications, regulator may be “stacked”
together allowing multiple fuel pressures from a
single fuel pump. Capable of supplying single or
dual carburetors and 1, 2, 3, or 4 stages of nitrous. Adjust- able from 5-12 PSI, regulator has ORB-10 inlet and outlet flow-thru ports, and ORB-6 outlet ports.
Extreme Flow EFI Regulator AFS13137
Regulator is engineered for applications where fuel pressures from 30-120 PSI are necessary, such as when using belt or hex drive fuel pumps. Manufactured from billet aluminum that is attractively black anod- ized, regulator has a .500" valve/seat and is f tted for large, -12AN inlet, outlet, and return ports.
Ultra-High Flow Adjustable EFI Regulator AFS13113
Use with belt or hex-drive fuel pumps. Regulator
is adjustable from 40-100 PSI with a vacuum/ boost reference of 1:1. Capable of supplying fuel
to gasoline or alcohol engines with over 4,000 horsepower, regulator has -10AN inlet, -8AN outlet, and -10AN return ports.
Pro-Series Boost Reference EFI Regulator
AFS13110
EFI regulator can deliver enough fuel to sup- port 2,000 horsepower. Regulator has two -8AN inlet ports and a single -10AN return port. Unit features two vacuum/boost f ttings for different installation options. Base pressure is adjustable from 30-60 PSI.
Pro-Series EFI Regulator AFS13145 NEW!
High volume, high pressure Pro-Series regulator
is capable of supplying EFI applications with up to 2,000 horsepower. Adjustable from 30-75 PSI with the installed spring, regulator is ideal for use with a Pro-Series, Brushless 3.5, or Brushless 5.0 fuel pump. Fittings must be purchase separately.
AFS13001
Regulator Service Kit for AFS13101 and AFS13109
Part No.
Modular Fuel Pressure Regulator AFS13217
Description
AFS13209
Double Adjustable Bypass Regulator, (4) -8AN ORB Ports
AFS13214
Double Adjustable Bypass Regulator, (2) -10AN ORB Ports
Pro-Stock Regulators
Track-tested Pro Stock regulators are for the A2000 fuel pump in single or dual carbureted setups and
are among the quickest response, highest flow AFS13210 units available.
Part No.
Description
AFS13208
Pro-Stock Regulator, (4) -6AN Outlet Ports and (1) 1/8"NPT Gauge Port
AFS13210
Pro-Stock Regulator, (2) -8AN Outlet Ports and (1) 1/8"NPT Gauge Port
Fuel Injected Adjustable Regulators
Compact EFI Regulators
AFS13105
Compact regulators for EFI applications with small
engine compartments. Flows enough fuel for up to
1,000 horsepower. Ideal for systems where only a
single inlet is required. Universal design regulators
have -6AN inlet and outlet ports, and are adjustable from 30- 70 PSI. Sold complete with mounting bracket and f ttings.
Part No. Description
AFS13105
Compact EFI Regulator, Red/Black
AFS13136
Compact EFI Regulator, Black
