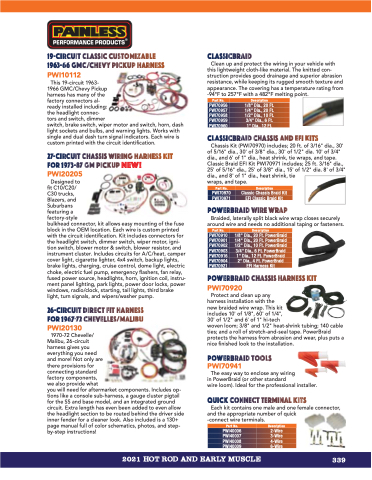

P. 341
19-Circuit Classic Customizable
1963-66 GMC/Chevy Pickup Harness
PWI10112
This 19-circuit 1963-
harness has many of the
factory connectors al-
ready installed including:
the headlight connec-
tors and switch, dimmer
switch, brake switch, wiper motor and switch, horn, dash light sockets and bulbs, and warning lights. Works with single and dual dash turn signal indicators. Each wire is
27-Circuit Chassis Wiring Harness Kit
For 1973-87 GM Pickup NEW!
PWI20205
Designed to
Blazers, and
Suburbans
featuring a
factory-style
bulkhead connector, kit allows easy mounting of the fuse block in the OEM location. Each wire is custom printed the headlight switch, dimmer switch, wiper motor, igni- tion switch, blower motor & switch, blower resistor, and cover light, cigarette lighter, 4x4 switch, backup lights, brake lights, charging, cruise control, dome light, electric fused power source, headlights, horn, ignition coil, instru- ment panel lighting, park lights, power door locks, power windows, radio/clock, starting, tail lights, third brake light, turn signals, and wipers/washer pump.
26-Circuit Direct Fit Harness
For 1967-72 Chevelles/Malibu
PWI20130
Malibu, 26-circuit
harness gives you
everything you need
and more! Not only are
there provisions for
connecting standard
factory components,
we also provide what
you will need for aftermarket components. Includes op- tions like a console sub-harness, a gauge cluster pigtail for the SS and base model, and an integrated ground circuit. Extra length has even been added to even allow the headlight section to be routed behind the driver side inner fender for a cleaner look. Also included is a 130+ page manual full of color schematics, photos, and step- by-step instructions!
Classicbraid
this lightweight cloth-like material. The knitted con- struction provides good drainage and superior abrasion resistance, while keeping its rugged smooth texture and appearance. The covering has a temperature rating from -94°F to 257°F with a 482°F melting point.
Part No.
PWI70956 PWI70957 PWI70958 PWI70959 PWI70960
Description
1/8" Dia., 20 Ft. 1/4" Dia., 20 Ft. 1/2" Dia., 10 Ft. 3/4" Dia., 6 Ft. 1" Dia., 12 Ft.
ClassicBraid Chassis and EFI Kits
of 5/16" dia., 30' of 3/8" dia., 30' of 1/2" dia. 10' of 3/4" dia., and 6' of 1" dia., heat shrink, tie wraps, and tape. 25' of 5/16" dia., 25' of 3/8" dia., 15' of 1/2" dia. 8' of 3/4" dia., and 8' of 1" dia., heat shrink, tie
wraps, and tape.
Part No.
PWI70970 PWI70971
Part No.
PWI70910 PWI70901 PWI70902 PWI70903 PWI70916 PWI70904 PWI70921
Description
1/8" Dia., 20 Ft. PowerBraid 1/4" Dia., 20 Ft. PowerBraid 1/2" Dia., 10 Ft. PowerBraid 3/4" Dia., 6 Ft. PowerBraid 1" Dia., 12 Ft. PowerBraid 2" Dia., 4 Ft. PowerBraid EFI Harness Kit
Description
Classic Chassis Braid Kit EFI Classic Braid Kit
PowerBraid Wire Wrap
Braided, laterally split black wire wrap closes securely
around wire and needs no additional taping or fasteners.
PowerBraid Chassis Harness Kit
PWI70920
Protect and clean up any
harness installation with the
new braided wire wrap. This kit
includes 10' of 1/8", 60' of 1/4",
30' of 1/2" and 6' of 1" hi-tech
protects the harness from abrasion and wear, plus puts a
PowerBraid Tools PWI70941
The easy way to enclose any wiring
in PowerBraid (or other standard
wire loom). Ideal for the professional installer.
Quick Connect Terminal Kits
Each kit contains one male and one female connector,
and the appropriate number of quick -connect wire terminals.
Part No.
PWI40006 PWI40007 PWI40008 PWI40009
Description
2-Wire 3-Wire 4-Wire 6-Wire
2021 HOT ROD AND EARLY MUSCLE
339
