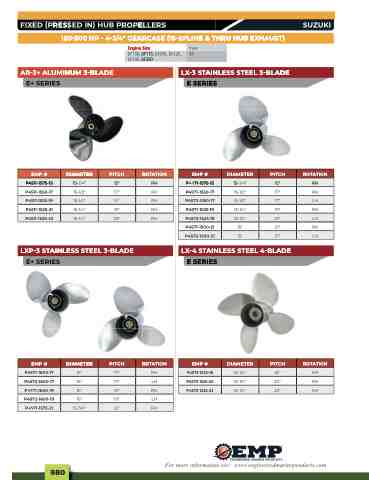

Page 1012 - 2025 Parts & Accessories Catalogue
P. 1012
FIXED (PRESSED IN) HUB PROPELLERS 150-300 HP • 4-3/4" GEARCASE (15-SPLINE & THRU HUB EXHAUST)
AR-3+ ALUMINUM 3-BLADE E+ SERIES
LX-3 STAINLESS STEEL 3-BLADE E SERIES
EMP # P4511-1575-15 P4511-1550-17 P4511-1525-19 P4511-1525-21 P4511-1525-23
DIAMETER 15-3/4" 15-1/2" 15-1/4" 15-1/4" 15-1/4"
PITCH ROTATION 15" RH 17" RH 19" RH
21" RH
23" RH
EMP # DIAMETER P4571-1575-15 15-3/4" P4571-1550-17 15-1/2"
P4572-1550-17 15-1/2" P4571-1525-19 15-1/4" P4572-1525-19 15-1/4" P4571-1500-21 15"
P4572-1500-21 15"
ROTATION
LXP-3 STAINLESS STEEL 3-BLADE E+ SERIES
LX-4 STAINLESS STEEL 4-BLADE E SERIES
EMP # P4571-1600-17 P4572-1600-17 P4571-1600-19 P4572-1600-19 P4571-1575-21 15-3/4"
EMP # DIAMETER PITCH P4573-1525-18 15-1/4" 18" RH P4573-1525-20 15-1/4" 20" RH P4573-1525-22 15-1/4" 22" RH
PAGE 32
For more information see: www.engineeredmarineproducts.com
980
DIAMETER 16" 16" 16" 16"
PITCH ROTATION 17" RH 17" LH 19" RH
19" LH
21" RH
Engine Size Year DF150, DF175, DF200, DF225, All DF250, DF300
SUZUKI
PITCH 15" RH 17" RH 17" LH 19" RH 19" LH 21" RH 21" LH
ROTATION
