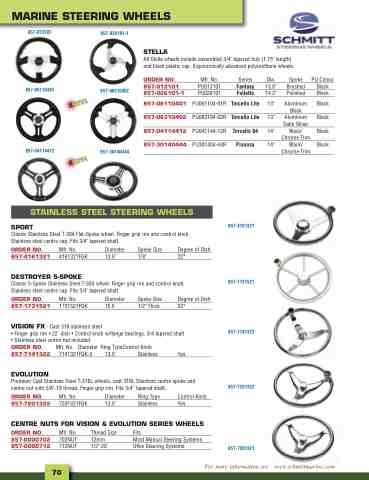

Page 102 - 2025 Parts & Accessories Catalogue

MARINE STEERING WHEELS
857-013101
857-06110401
857-026101-1
STELLA
All Stella wheels include assembled 3/4" tapered hub (1.75" length) and black plastic cap. Ergonomically advanced polyurethane wheels.
857-30140444 PU301404-44R Pianosa
857-04114412
SPORT
857-4161321
857-1731521
857-7141322
857-7201322
857-7201321
857-06310402
857-30140444
ORDER NO.
857-013101
857-026101-1
857-06110401
857-06310402
857-04114412
Mfr. No.
PU013101
PU026101
PU061104-01R
PU063104-02R
PU041144-12R
Series
Fantasy
Folletto
Torcello Lite
Torcello Lite
Torcello 04
Dia. Spoke
13.8" Brushed
14.2" Polished
13" Aluminum Black
13" Aluminum Satin Silver
14" Black/ Chrome Trim
14" Black/ Chrome Trim
PU Colour
Black
Black
Black
Black
Black
Black
STAINLESS STEEL STEERING WHEELS
Classic Stainless Steel T-304 Flat-Spoke wheel. Finger grip rim and control knob. Stainless steel centre cap. Fits 3/4" tapered shaft.
ORDER NO. Mfr. No. Diameter Spoke Size Degree of Dish
857-4161321 4161321FGK 13.5" 1/8" 22°
DESTROYER 5-SPOKE
Classic 5-Spoke Stainless Steel T-304 wheel. Finger grip rim and control knob. Stainless steel centre cap. Fits 3/4" tapered shaft.
ORDER NO. Mfr. No. Diameter Spoke Size Degree of Dish
857-1731521 1731521FGK 15.5 1/2" Thick 22°
VISION FX - Cast 316 stainless steel • Finger grip rim • 22˚ dish • Control knob w/flange bearings, 3/4 tapered shaft • Stainless steel centre nut included. ORDER NO. Mfr. No. Diameter Ring TypeControl Knob 857-7141322 7141321FGK-3 13.5" Stainless Yes
EVOLUTION
Premium Cast Stainless Steel T-316L wheels, cast 316L Stainless centre spoke and centre nut with 5/8"-18 thread. Finger grip rim. Fits 3/4” tapered shaft.
ORDER NO. Mfr. No. Diameter Ring Type Control Knob
857-7201322 7201321FGK 13.5" Stainless Yes
CENTRE NUTS FOR VISION & EVOLUTION SERIES WHEELS
ORDER NO.
857-0000702
857-0000712
Mfr. No.
702NUT
712NUT
Thread Size
12mm
1/2"-20
Fits
Most Manual Steering Systems
Uflex Steering Systems
For more information see: www.schmittmarine.com
