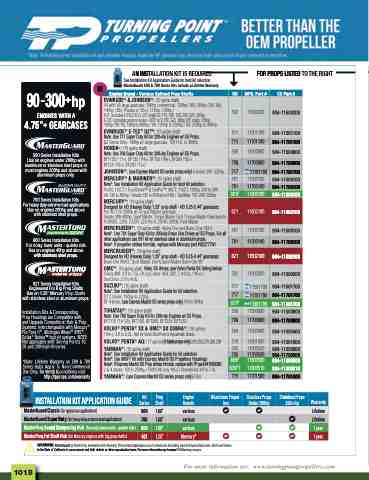

Page 1050 - 2025 Parts & Accessories Catalogue

*
+ 90-300 hp
ENGINES WITH A 4.75"+ GEARCASES
500 Series Installation Kits Use on engines under 200hp with aluminum or stainless steel props or most engines 200hp and above with aluminum props only.
700 Series Installation Kits For heavy duty extreme load applications Use on engines 200hp and above with stainless steel props.
Kit
502
511 711
508
708 717
501 701 801F
621
501 701
621
502
517 717 817F 508 708
504
510
505 705 805F
805FT
715
Aluminum Propel- lers
MFG. Part #
11500200
11501100 11701100
11500800 11700800
NEW 11701700 11500100 11700100 11800100
11602100
11500100 11700100
11602100
11500200 NEW 11501700
NEW 11701700 NEW 11801700
11500800 11700800
11500400
11501000
11500500 11700500 11800500
11800510
11701500
Stainless Props Under 200hp
CC Part #
904-11500200
904-11501100 904-11701100
904-11500800
904-11700800 904-11701700
904-11500100 904-11700100 904-11800100
904-11602100
904-11500100 904-11700100
904-11602100
904-11500200
904-11501700 904-11701700 904-11801700 904-11500800 904-11700800
904-11500400
904-11501000
904-11500500 904-11700500 904-11800500
904-11800510
904-11701500
Stainless Props 200+hp
800 Series Installation Kits For noisy lower units - quieter ride Use on engines 40hp and above with stainless steel props.
ASTERTORQ
M
TM
FatShaftHub FSH 621 Series Installation Kits
TM
Engineered For Big Prop Shafts Use on 1.25" Mercury Prop Shafts with stainless steel or aluminum props.
Installation Kits & Corresponding Prop Housings are Compatible with, and Upgrade Competitors’ Hub & Prop Systems. Interchangeable with Mercury® Flo-Torq II®, Michigan Wheel® XHS®, Solas® RubexTMhubkkitittsystems. NOTE: Not applicable wiitthTTurning Point’s 10, 20 and200HHuubbKKititsesreires.
*Note: Lifetime Warranty on 500 & 700 Series Hubs Apply To Non-Commercial Use Only, ffor tterrms&cconditions visit:
http://tpprops.com/warranty
INSTALLATION KIT APPLICATION GUIDE
MasterGuard Classic (for typical use applications) MasterGuard Super Duty (for heavy duty extreme load applications) MasterTorq Sound Dampening Hub (for noisy lower units - quieter ride) MasterTorq Fat Shaft Hub (for Mercury engines with big prop shafts)
Kit Series
500 700 800 621
Prop Shaft
1.00" 1.00" 1.00" 1.25"
Engine Brands
various various various Mercury®
Warranty
Lifetime Lifetime 1 year 1 year
For more information see: www.turningpointpropellers.com
1018
AN INSTALLATION KIT IS REQUIRED See Installation Kit Application Guide for best kit selection. MasterGuard 500 & 700 Series Kits include a Lifetime Warranty
Engine Brand - Various Splined Prop Shafts
®® EVINRUDE &JOHNSON :(15splineshaft)
V4 with V6 large gearcase: 100hp commercial, 120hp ('85),130hp ('95-'96), 140hp ('85), Pleasure ('95+): 115hp, 130hp / H.O. (includes E-TEC H.O.): (25" shaft) 90, 115, 135, 150, 200, 225, 250hp E-TEC(includespontoonseries-NOTforE-TECG2): 90hp(25"shaft),115hp,
130hp ('09-'10), 135hp to 300hp / V6: 135hp to 250hp / V8: 250hp to 300hp
EVINRUDE® E-TEC® G2TM:(15splineshaft) Note: Use 711 Super Duty Kit for 200+hp Engines w/ SS Props. G2 Series Only: 140hp w/ large gearcase, 150 H.O. to 300hp HONDA®: (15 spline shaft) Note: Use 708 Super Duty Kit for 200+hp Engines w/ SS Props. BF115D ('11+), BF135 ('04+), BF150 ('04+), BF200 ('02+), BF225 ('02+), BF250 ('12+)
JOHNSON®: (use Express Mach3 OS series props only) 4 stroke: 200- 225hp MERCURY® & MARINER®: (15 spline shaft)
Note1: See Installation Kit Application Guide for best kit selection. ProXS 115CT / FourStrokeTM & SeaProTM: 90CT, 115CT, 150hp, 200 to 300 V6:135to300hp/Verado135to300hp(notHD)/ OptiMax:150,200,250hp MERCURY®: (19 spline shaft) Designed for HD (Heavey Duty) 1.25” prop shaft - HD 5.25-5.44” gearcases: Pro XS 175-250hp w/ Torque Master gearcase, Verado 300-400hp, Sport Master, Torque Master I & II (Torque Master Gearcases to fit 200XS, 225X, 2.5 EFI, 225 Pro X, 250XS, 300X), Fleet Master MERCRUISER®: (15 spline shaft) Alpha One and Bravo One (‘83+) Note1: Use 701 Super Duty Kit for 200+hp Bravo One Drives w/ SS Props. For all other applications use 501 kit w/ stainless steel or aluminum props. Note2: If propeller strikes trim tab, replace with Mercury part #822777A1 MERCRUISER®: (19 spline shaft) Designed for HD (Heavey Duty) 1.25” prop shaft - HD 5.25-5.44” gearcases: Bravo One XR/XZ, Sport Master, shorty Sport Master Bravo One XR
® OMC : (15 spline shaft) Note: SX drives, see Volvo Penta SX listing below.
Cobra 800: 3.0 to 7.5L / King Cobra: 454, 502, 7.4-8.2L ('90+) / Sea Drive: 2.0 to 4.0L SUZUKI®: (15 spline shaft) Note1: See Installation Kit Application Guide for kit selection. DT 2 stroke: 150hp to 225hp
DF 4 stroke: (use Express Mach3 OS series props only) 150 to 300hp
TOHATSU®: (15 spline shaft) Note: Use 708 Super Duty Kit for 200+hp Engines w/ SS Props. BFT115 ('14-'20), BFT150, BFT200, BFT225, BFT250
VOLVO® PENTA® SX & OMC® SX COBRA®: 19 spline) ('94+): 3.0 to 8.2L. Not for Volvo DuoProp or Aquamatic drives.
VOLVO® PENTA® AQ: 17 spline)(4bladepropsonly)200,250,270,280,290
YAMAHA®: (15 spline shaft) Note1: See Installation Kit Application Guide for kit selection. Note2: Use 805FT Kit with Express Mach3 OS Propellers Housings Note3:IfExpressMach3OSPropstrikestrimtab,replacewithTPpart#41505060. 2 & 4 stroke: 150 to 250hp / F300 (V6 only '09+) / Sterndrives 3.0 to 7.4L
YAMAHA®: (use Express Mach3 OS series props only) F350
FOR PROPS LISTED TO THE RIGHT
