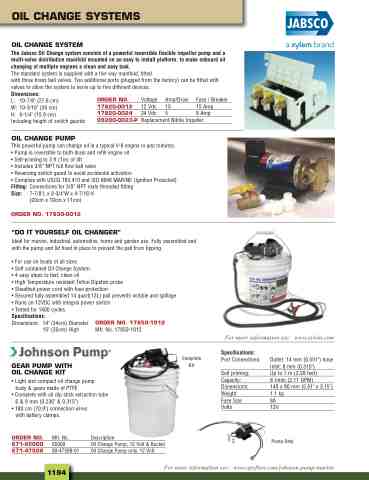

Page 1216 - 2025 Parts & Accessories Catalogue

OIL CHANGE SYSTEMS
OIL CHANGE SYSTEM
The Jabsco Oil Change system consists of a powerful reversible flexible impeller pump and a multi-valve distribution manifold mounted on an easy to install platform, to make onboard oil changing of multiple engines a clean and easy task. The standard system is supplied with a five way manifold, fitted
with three brass ball valves. Two additional ports (plugged from the factory) can be fitted with valves to allow the system to serve up to five different devices. Dimensions: L: 10-7/8" (27.6 cm)
ORDER NO.
Voltage
12 Vdc
24 Vdc
Amp/Draw Fuse / Breaker
W: 10-3/16" (26 cm) H: 6-1/4"(15.9cm) Including height of switch guards
OIL CHANGE PUMP
17820-0012
17820-0024
09200-0023-P
10 15 Amp
5 8 Amp
This powerful pump can change oil in a typical V-8 engine • Pump is reversible to both drain and refill engine oil • Self-priming to 3 ft (1m) of lift • Includes 3/8” NPT full flow ball valve
ReplacementNitrileImpeller
in just minutes.
• Reversing switch guard to avoid accidental activation • Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protected) Fitting: Connections for 3/8” NPT male threaded fitting Size: 7-7/8"L x 3-3/4"W x 4-7/16'H
(20cm x 10cm x 11cm)
ORDER NO. 17830-0012
“DO IT YOURSELF OIL CHANGER”
Ideal for marine, industrial, automotive, home and garden use. Fully assembled and with the pump and lid fixed in place to prevent the pail from tipping.
• For use on boats of all sizes • Self contained Oil Change System • 4 easy steps to fast, clean oil • High Temperature resistant Teflon Dipstick probe • Sheathed power cord with fuse protection • Secured fully assembled 14 quart(13L) pail prevents wobble and spillage • Runs on 12VDC with integral power switch • Tested for 1400 cycles. Specifications: Dimensions: 14" (34cm) Diameter ORDER NO. 17850-1012
15" (35cm) High Mfr. No. 17850-1012
GEAR PUMP WITH OIL CHANGE KIT
• Light and compact oil change pump body & gears made of PTFE
• Complete with oil dip stick extraction tube 6 & 8 mm (0.236" & 0.315")
For more information see: www.xylem.com
Complete Kit
Specifications:
Port Connections:
Self priming:
Capacity:
Dimensions:
Weight:
Fuse Size
Volts
Outlet: 14 mm (0.551") hose Inlet: 8 mm (0.315") ␣
Up to 1 m (3.28 feet)
8 I/min (2.11 GPM)
140 x 80 mm (5.51" x 3.15")
1.1 kg
8A
12V
Pump Only
• 180 cm (70.9") connection wires with battery clamps.
ORDER NO.
671-65000
671-47508
Mfr. No.
65000
80-47508-01
Description
Oil Change Pump, 12 Volt & Bucket
Oil Change Pump only, 12 Volt
For more information see: www.spxflow.com/johnson-pump-marine
