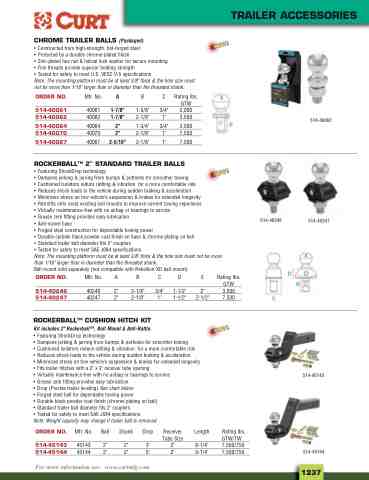

Page 1269 - 2025 Parts & Accessories Catalogue

TRAILER ACCESSORIES
CHROME TRAILER BALLS (Packaged) • Constructed from high-strength, hot-forged steel
• Protected by a durable chrome-plated finish • Zinc-plated hex nut & helical lock washer for secure mounting • Fine threads provide superior holding strength • Tested for safety to meet U.S. VESC V-5 specifications Note: The mounting platform must be at least 3/8" thick & the hole size must not be more than 1/16" larger than in diameter than the threaded shank.
ORDER NO.
514-40061
514-40062
514-40064
514-40070
514-40067
Mfr. No. A
40061 1-7/8"
40062 1-7/8"
40064 2"
40070 2"
40067 2-5/16"
B
1-5/8"
2-1/8"
1-3/4"
2-1/8"
2-1/8"
C Rating lbs. GTW
3/4" 2,000
1" 3,500
3/4" 3,500
1" 7,500
1" 7,500
A
C
B
514-40062
514-40247
ROCKERBALLTM 2" STANDARD TRAILER BALLS
• Featuring ShockDrop technology • Dampens jerking & jarring from bumps & potholes for smoother towing • Cushioned isolators reduce rattling & vibration for a more comfortable ride • Reduces shock loads to the vehicle during sudden braking & acceleration • Minimizes stress on tow vehicle’s suspension & brakes for extended longevity • Retrofits onto most existing ball mounts to improve current towing experience • Virtually maintenance-free with no airbag or bearings to service • Grease zerk fitting provides easy lubrication • Anti-swivel base • Forged steel construction for dependable towing power • Durable carbide black powder coat finish on base & chrome plating on ball • Standard trailer ball diameter fits 2" couplers • Tested for safety to meet SAE J684 specifications Note: The mounting platform must be at least 3/8" thick & the hole size must not be more than 1/16" larger than in diameter than the threaded shank. Ball mount sold separately (not compatible with Rebellion XD ball mount).
514-40246
E
A
BC
ORDER NO.
514-40246
514-40247
Mfr. No.
40246
40247
A B C
2" 2-1/8" 3/4"
2" 2-1/8" 1"
D E
1-1/2" 2"
1-1/2" 2-1/2"
Rating lbs. GTW
3,500
7,500
Rating lbs. GTW/TW
7,500/750
7,500/750
D
ROCKERBALLTM CUSHION HITCH KIT
Kit includes 2" RockerballTM, Ball Mount & Anti-Rattle.
• Featuring ShockDrop technology • Dampens jerking & jarring from bumps & potholes for smoother towing • Cushioned isolators reduce rattling & vibration for a more comfortable ride • Reduces shock loads to the vehicle during sudden braking & acceleration • Minimizes stress on tow vehicle’s suspension & brakes for extended longevity • Fits trailer hitches with a 2" x 2" receiver tube opening • Virtually maintenance-free with no airbag or bearings to service • Grease zerk fitting provides easy lubrication • Drop (Precise trailer leveling) See chart below • Forged steel ball for dependable towing power • Durable black powder coat finish (chrome plating on ball) • Standard trailer ball diameter fits 2" couplers • Tested for safety to meet SAE J684 specifications Note: Weight capacity may change if trailer ball is removed.
514-45143
ORDER NO.
514-45143
514-45144
Mfr. No.
45143
45144
Ball Shank Drop
2" 2" 3"
2" 2" 5"
Receiver Tube Size
2"
2"
Length
8-1/4"
9-1/4"
514-45144
For more information see: www.curtmfg.com
1237
