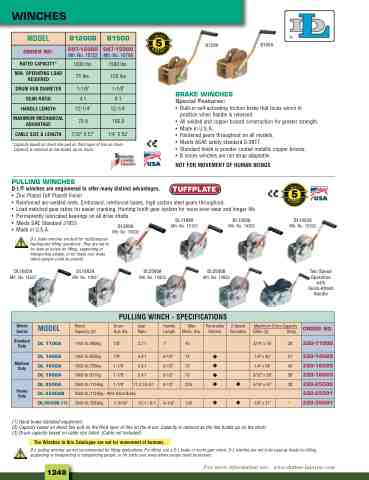

Page 1280 - 2025 Parts & Accessories Catalogue

WINCHES
MODEL
ORDER NO.
RATED CAPACITY*
MIN. OPERATING LOAD REQUIRED
DRUM HUB DIAMETER GEAR RATIO HANDLE LENGTH MAXIMUM MECHANICAL
ADVANTAGE CABLE SIZE & LENGTH
B1200B B1500
097-12000 097-15000
B1200
B1500
Mfr. No. 10752 1200 lbs.
75 lbs.
1-1/8" 4:1 12-1/4"
72.9 7/32" X 57'
Mfr. No. 10768 1500 lbs.
150 lbs
1-1/8" 6:1 12-1/4"
106.9 1/4" X 52'
BRAKE WINCHES
Special Features:
• Built-in self-activating friction brake that locks winch in position when handle is released.
• All welded and copper brazed construction for greater strength. • Made in U.S.A. • Hardened gears throughout on all models. • Meets ASAE safety standard S-361T.
• Standard finish is powder coated metallic copper bronze. • B series winches are not strap adaptable.
*Capacity based on direct line pull on third layer of line on drum. Capacity is reduced as line builds up on drum.
PULLING WINCHES
D-L® winches are engineered to offer many distinct advantages.
NOT FOR MOVEMENT OF HUMAN BEINGS
• Zinc Plated Tuff Plate® Finish • Reinforced arc-welded reels. Embossed, reinforced bases, high carbon steel gears throughout. • Load matched gear ratios for easier cranking. Hunting tooth gear system for more even wear and longer life. • Permanently lubricated bearings on all drive shafts. • Meets SAE Standard J1853 • Made in U.S.A.
D-L brake winches are built for multipurpose hauling and lifting operations. They are not to be used as hoists for lifting, supporting or transporting people, or for loads over areas where people could be present.
DL900A
Mfr. No. 15002
DL1100A
Mfr. No. 15103
DL1300A
Mfr. No. 14362
DL1402A
Mfr. No. 15303
DL1602A
Mfr. No. 14527
Winch Series
Standard Duty
Medium Duty
Heavy Duty
DL1802A
Mfr. No. 14627
Rated Capacity (2)
1100 lb./499kg
1400 lb./635kg
1600 lb./726kg
1800 lb./817kg
2500 lb./1134kg
DL2500A
Mfr. No. 14825
DL2500B
Mfr. No. 14830
Two Speed Operation with Quick-Attach Handle
ORDER NO.
220-11000
220-14020
220-16020
220-18020
220-25000
220-25001
220-35001
PULLING WINCH - SPECIFICATIONS
MODEL
DL 1100A
DL 1402A
DL 1602A
DL 1802A
DL 2500A
DL 2500AB
DL3500B (1)
Drum Hub Dia.
7/8"
7/8"
1-1/8"
1-1/8"
1-1/8"
Gear Ratio
3.7:1
4.4:1
5.4:1
5.4:1
17.3:1/5.4:1
Handle Max Reversible Length Mech. Adv. Ratchet
7" 49
9-1/2" 74 u
9-1/2" 75 u
9-1/2" 73 u
2-Speed Operation
Maximum Drum Capacity
9-1/2" 229 u u
Cable (3)
3/16" x 79'
1/4" x 40'
1/4" x 58'
9/32" x 58'
5/16" x 47'
Strap
29'
31'
45'
38'
38'
-
2500 lb./1134kg - With Hand Brake
3500 lb./1589kg 1-5/16" 12:1 / 6:1
9-1/2"
135
u u 3/8"x37'
(1) Hand brake standard equipment. (2) Capacity based on direct line pull on the third layer of line on the drum. Capacity is reduced as the line builds up on the drum. (3) Drum capacity based on cable size listed. (Cable not included)
The Winches in this Catalogue are not for movement of humans.
D-L pulling winches are not recommended for lifting applications. For lifting, use a D-L brake or worm gear winch. D-L winches are not to be used as hoists for lifting, supporting or transporting or transporting people, or for loads over areas where people could be present,
1248
For more information see: www.dutton-lainson.com
