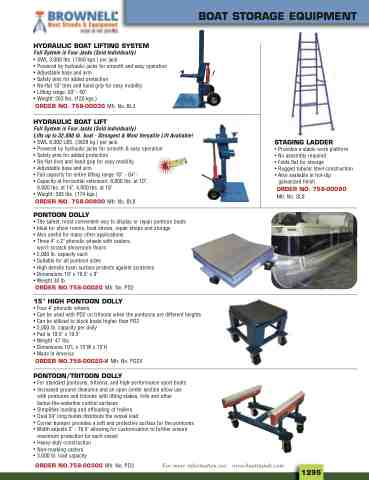

Page 1327 - 2025 Parts & Accessories Catalogue

BOAT STORAGE EQUIPMENT
HYDRAULIC BOAT LIFTING SYSTEM
Full System is Four Jacks (Sold Individually)
• SWL 3,000 lbs. (1360 kgs.) per jack • Powered by hydraulic jacks for smooth and easy operation • Adjustable base and arm • Safety pins for added protection • No-flat 10" tires and hand grip for easy mobility • Lifting range: 20" - 50" • Weight: 263 lbs. (120 kgs.)
ORDER NO. 758-00030 Mfr. No. BL3
HYDRAULIC BOAT LIFT
Full System is Four Jacks (Sold Individually) Lifts up to 32,000 lb. boat - Strongest & Most Versatile Lift Available! • SWL 8,000 LBS. (3628 kg.) per jack • Powered by hydraulic jacks for smooth & easy operation • Safety pins for added protection • No-flat tires and hand grip for easy mobility • Adjustable base and arm • Full capacity for entire lifting range 18” - 64"- • Capacity at horizontal extension: 8,000 lbs. at 10",
6,000 lbs. at 14", 4,000 lbs. at 18" • Weight: 383 lbs. (174 kgs.)
ORDER NO. 758-00800 Mfr. No. BL8
PONTOON DOLLY
• The safest, most convenient way to display or repair pontoon boats • Ideal for show rooms, boat shows, repair shops and storage • Also useful for many other applications • Three 4" x 2" phenolic wheels with casters,
won’t scratch showroom floors • 2,000 lb. capacity each • Suitable for all pontoon sizes • High density foam surface protects against scratches • Dimensions 19" x 19.5" x 9" • Weight 30 lb.
ORDER NO.758-00020 Mfr. No. PD2
15" HIGH PONTOON DOLLY
• Four 4" phenolic wheels • Can be used with PD2 on tritoons when the pontoons are different heights • Can be utilized to block boats higher than PD2 • 2,000 Ib. capacity per dolly • Pad is 19.5" x 19.5" • Weight: 47 lbs. • Dimensions 19"L x 15"W x 15"H • Made in America
ORDER NO.758-00020-X Mfr. No. PD2X
PONTOON/TRITOON DOLLY
• For standard pontoons, tritoons, and high-performance sport boats • Increased ground clearance and an open center section allow use
with pontoons and tritoons with lifting stakes, foils and other
below-the-waterline control surfaces • Simplifies loading and offloading of trailers • Dual 24" long bunks distribute the vessel load • Corner bumper provides a soft and protective surface for the pontoons • Width adjusts 2" - 19.5" allowing for customization to further ensure
maximum protection for each vessel • Heavy-duty construction
• Non-marking casters • 3,000 lb. load capacity
STAGING LADDER
• Provides a stable work platform • No assembly required • Folds flat for storage • Rugged tubular steel construction • Also available in hot-dip
galvanized finish
ORDER NO. 758-00080
Mfr. No. SL8
ORDER NO.758-00300 Mfr. No. PD3 For more information see: www.boatstands.com
1295
