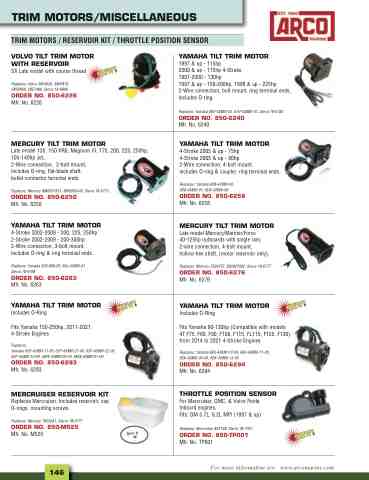

Page 178 - 2025 Parts & Accessories Catalogue

TRIM MOTORS/MISCELLANEOUS
TRIM MOTORS / RESERVOIR KIT / THROTTLE POSITION SENSOR
VOLVO TILT TRIM MOTOR WITH RESERVOIR SX Late model with course thread
Replaces: Volvo 3854030, 3860879, 3858069, 3857489, Sierra 18-6806 ORDER NO. 850-6226 Mfr. No. 6226
MERCURY TILT TRIM MOTOR
Late model 135, 150 XR6, Magnum III, 175, 200, 225, 250hp, 105-140hp Jet, 2-Wire connection, 2-bolt mount, includes O-ring, flat-blade shaft,
bullet connector terminal ends.
Replaces: Mercury 8M0031551, 8M0060140, Sierra 18-6773
ORDER NO. 850-6250
Mfr. No. 6250
YAMAHA TILT TRIM MOTOR
4-Stroke 2002-2009 - 200, 225, 250hp 2-Stroke 2002-2009 - 200-300hp 2-Wire connection, 3-bolt mount, includes O-ring & ring terminal ends.
Replaces: Yamaha 60V-880-00, 69J-43880-01, Sierra 18-6798 ORDER NO. 850-6263 Mfr. No. 6263
YAMAHA TILT TRIM MOTOR
Includes O-Ring
Fits Yamaha 150-250hp, 2011-2021 4-Stroke Engines
Replaces: Yamaha 63P-43880-11-00, 63P-43880-21-00, 63P-43880-22-00, 63P-43880-10-00, 6KW-43880-00-00, 6KW-43880-01-00 ORDER NO. 850-6293 Mfr. No. 6293
MERCRUISER RESERVOIR KIT
Replaces Mercruiser. Includes reservoir, cap, O-rings, mounting screws.
Replaces: Mercury 18525A1, Sierra 18-6771
ORDER NO. 850-M525
Mfr. No. M525
YAMAHA TILT TRIM MOTOR
1997 & up - 115hp 2000 & up - 115hp 4-Stroke 1997-2000 - 130hp 1997 & up - 150-200hp, 1998 & up - 225hp 2-Wire connection, bolt mount, ring terminal ends, includes O-ring.
Replaces: Yamaha 68V-43880-04, 67H-43880-10, Sierra 18-6783
ORDER NO. 850-6240
Mfr. No. 6240
YAMAHA TILT TRIM MOTOR
4-Stroke 2005 & up - 75hp 4-Stroke 2005 & up - 90hp 2-Wire connection, 4-bolt mount, includes O-ring & coupler, ring terminal ends.
Replaces: Yamaha 6D8-43880-00, 6D8-43880-01, 6D8-43880-09 ORDER NO. 850-6258 Mfr. No. 6258
MERCURY TILT TRIM MOTOR
Late model Mercury/Mariner/Force 40-125hp outboards with single ram, 2-wire connection, 4-bolt mount, hollow-hex shaft, (motor reservoir only).
Replaces: Mercury 55654T2, 893907A02, Sierra 18-6777
ORDER NO. 850-6276
Mfr. No. 6276
YAMAHA TILT TRIM MOTOR
Includes O-Ring
Fits Yamaha 90-130hp (Compatible with models 4T F75, F80, F90, F100, F115, FL115, F125, F130) from 2014 to 2021 4-Stroke Engines
Replaces: Yamaha 6EK-43880-12-00, 6EK-43880-11-00, 6EK-43880-00-00, 6EK-43880-13-00 ORDER NO. 850-6294 Mfr. No. 6294
THROTTLE POSITION SENSOR
For Mercruiser, OMC, & Volvo Penta Inboard engines. Fits: GM 5.7L, 6.2L MPI (1997 & up)
Replaces: Mercruiser 803148, Sierra 18-7757
ORDER NO. 850-TP001
Mfr. No. TP001
For more information see: www.arcomarine.com
146
