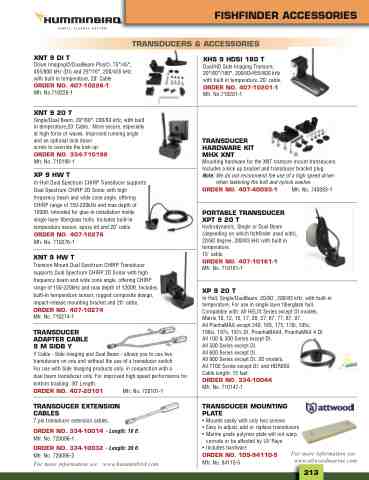

Page 245 - 2025 Parts & Accessories Catalogue

FISHFINDER ACCESSORIES
simply. clearly. better.
TRANSDUCERS & ACCESSORIES
XNT 9 DI T
Down Imaging©/DualBeam Plus©, 75°/45°, 455/800 kHz (DI) and 25°/16°, 200/455 kHz, with built in temperature, 20' Cable ORDER NO. 407-10226-1
Mfr. No.710226-1
XNT 9 20 T
Single/Dual Beam, 20°/60°, 200/83 kHz, with built in temperature,20' Cable. More secure, especially at high force of waves. Improved running angle and an optional lock down
screw to override the kick up.
ORDER NO. 334-710198
Mfr. No. 710198-1
XP 9 HW T
In-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Intended for glue-in installation inside single layer fiberglass hulls. Includes built-in temperature sensor, epoxy kit and 20’ cable. ORDER NO. 407-10276
Mfr. No. 710276-1
XNT 9 HW T
Transom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20' cable. ORDER NO. 407-10274
Mfr. No. 710274-1
XHS 9 HDSI 180 T
Dual/HD Side Imaging Transom, 20°/60°/180°, 200/83/455/800 kHz with built in temperature. 20' cable. ORDER NO. 407-10201-1 Mfr. No.710201-1
TRANSDUCER HARDWARE KIT MHX XNT Mounting hardware for the XNT transom mount transducers. Includes a kick up bracket and transducer bracket plug. Note: We do not recommend the use of a high speed driver
when fastening the bolt and nylock washer.
ORDER NO. 407-40093-1
Mfr. No. 740093-1
TRANSDUCER ADAPTER CABLE 9 M SIDB Y Y Cable - Side Imaging and Dual Beam - allows you to use two transducers on one unit without the use of a transducer switch. For use with Side Imaging products only, in conjunction with a dual beam transducer only. For improved high speed performance for bottom tracking. 30".Length. ORDER NO. 407-20101
TRANSDUCER EXTENSION CABLES 7 pin transducer extension cables.
PORTABLE TRANSDUCER XPT 9 20 T Hydrodynamic, Single or Dual Beam (depending on which fishfinder used with), 20/60 degree, 200/83 kHz with built in temperature.
15' cable.
ORDER NO. 407-10161-1
Mfr. No. 710161-1
XP 9 20 T
In Hull, Single/DualBeam, 20/60˚, 200/83 kHz, with built-in temperature. For use in single layer fiberglass hull. Compatible with: All HELIX Series except DI models, Matrix 10, 12, 15, 17, 20, 27, 67, 77, 87, 97.
All PianhaMAX except 240, 165, 175, 176i, 195c, 196ci, 197c, 197c DI, PiranhaMAX4, PiranhaMAX 4 DI. All 100 & 300 Series except DI. All 500 Series except DI. All 600 Series except DI. All 900 Series except DI, 3D models. All 1100 Series except DI, and HDR650. Cable length: 15 feet. ORDER NO. 334-10044 Mfr. No. 710147-1
TRANSDUCER MOUNTING PLATE • Mounts easily with only two screws • Easy to adjust, add or replace transducers • Marine grade polymer plate will not warp,
Mfr. No. 720101-1
ORDER NO. 334-10014 - Length: 10 ft. Mfr. No. 720096-1
ORDER NO. 334-10032 - Length: 30 ft. Mfr. No. 720096-2 For more information see: www.humminbird.com
corrode or be affected by UV Rays • Includes hardware ORDER NO. 109-94110-5 Mfr. No. 94110-5
For more information see: www.attwoodmarine.com
