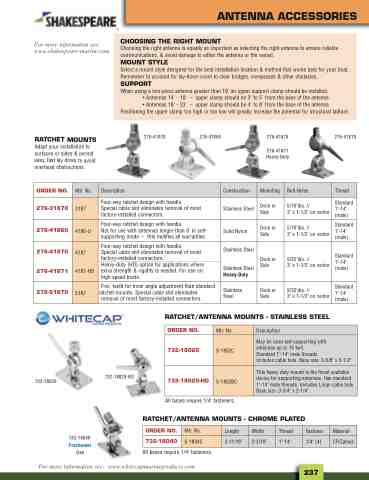

Page 269 - 2025 Parts & Accessories Catalogue

ANTENNA ACCESSORIES
CHOOSING THE RIGHT MOUNT
Choosing the right antenna is equally as important as selecting the right antenna to ensure reliable communications, & avoid damage to either the antenna or the vessel. MOUNT STYLE Select a mount style designed for the best installation location & method that works best for your boat. Remember to account for lay-down room to clear bridges, overpasses & other obstacles. SUPPORT
When using a two-piece antenna greater than 10' an upper support clamp should be installed. • Antennas 14' - 18' – upper clamp should be 3' to 5' from the base of the antenna • Antennas 18' - 23' – upper clamp should be 4' to 8' from the base of the antenna
Positioning the upper clamp too high or too low will greatly increase the potential for structural failture.
For more information see: www.shakespeare-marine.com
ORDER NO.
Mfr. No.
Description
Construction
Mounting
Bolt Holes
Thread
276-31870
3187
Four-way ratchet design with handle. Special cable slot eliminates removal of most factory-installed connectors.
Stainless Steel
Deck or Side
5/16"dia. // 3" x 1-1/2" on center
Standard 1"-14" (male)
276-41860
4186-U
Four-way ratchet design with handle. Not for use with antennas longer than 8' in self- supporting mode – this nullifies all warranties.
Solid Nylon
Deck or Side
5/16"dia. // 3" x 1-1/2" on center
Standard 1"-14" (male)
276-41870 276-41871
4187
4187-HD
Four-way ratchet design with handle. Special cable slot eliminates removal of most factory-installed connectors.
Stainless Steel
Stainless Steel
Heavy-Duty
Deck or Side
9/32"dia. // 3" x 1-1/2" on center
Standard 1"-14" (male)
Heavy-duty (HD) option for applications where extra strength & rigidity is needed. For use on high speed boats.
276-51870
5187
Five˚ teeth for inner angle adjustment than standard ratchet mounts. Special cable slot eliminates
removal of most factory-installed connectors.
Stainless Steel
Deck or Side
9/32"dia. // 3" x 1-1/2" on center
Standard 1"-14" (male)
ORDER NO.
Mfr. No.
Description
732-18020
S-1802C
May be used self-supporting with antennae up to 15 feet. Standard 1"-14" male threads. Includes cable hole. Base size: 3-5/8" x 2-1/2"
732-18020-HD
S-1802BC
This heavy duty mount is the finest available device for supporting antennae. Has standard 1"-14" male threads. Includes Loran cable hole. Base size: 3-3/4" x 2-1/4"
732-18020-HD
276-41870 276-41860 276-41870 276-51870
276-41871 Heavy-Duty
RATCHET/ANTENNA MOUNTS - STAINLESS STEEL
All bases require 1/4" fasteners.
RATCHET/ANTENNA MOUNTS - CHROME PLATED
All bases require 1/4" fasteners.
732-18020
ORDER NO.
Mfr. No.
Length
Width
Thread
Fastener
Material
732-18040
S-1804C
3-11/16"
2-3/16"
1"-14"
1/4" (4)
CP/Zamac
732-18040
Freshwater Use
For more information see: www.whitecapmarineproducts.com
237
RATCHET MOUNTS
Adapt your installation to surfaces or sides & permit easy, fast lay down to avoid overhead obstructions.
