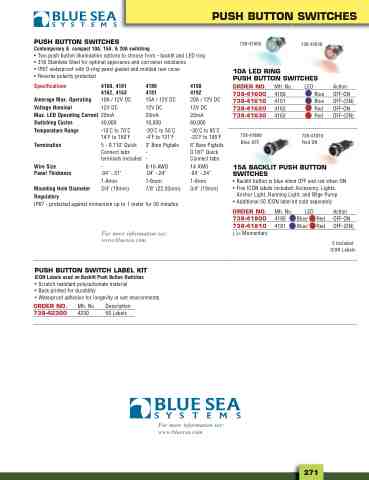

Page 303 - 2025 Parts & Accessories Catalogue

PUSH BUTTON SWITCHES
PUSH BUTTON SWITCHES
Contemporary & compact 10A, 15A, & 20A switching
• Two push button illumination options to choose from - backlit and LED ring • 316 Stainless Steel for optimal apperance and corrosion resistance • IP67 waterproof with O-ring panel gasket and molded rear cover • Reverse polarity protected
738-41600
738-41610
10A LED RING PUSH BUTTON SWITCHES
4180 4181 15A / 12V DC 12V DC 20mA 10,000 -20˚C to 55˚C -4˚F to 131˚F 3" Bare Pigtails - - 8-16 AWG .04" -.24" 1-6mm 7/8" (22.35mm)
for 30 minutes
For more information see: www.bluesea.com
PUSH BUTTON SWITCH LABEL KIT
ICON Labels used on Backlit Push Button Switches
• Scratch resistant polycarbonate material • Back printed for durability • Waterproof adhesive for longevity in wet environments
ORDER NO. Mfr. No. Description
738-42300 4230 50 Labels
4190 4192 20A / 12V DC 12V DC
ORDER NO.
738-41600
738-41610
738-41620
Mfr. No. LED
4160 Blue
4161 Blue
4162 Red
4163 Red
738-41810 Red ON
Action
OFF-ON
OFF-(ON)
OFF-ON
OFF-(ON)
Specifications
Amerage Max. Operating Voltage Nominal Max. LED Operating Current Switching Cycles Temperature Range
Termination
Wire Size Panel Thickness
4160, 4161 4162, 4163 10A / 12V DC 12V DC 20mA
40,000 -10˚C to 70˚C 14˚F to 158˚F 5 - 0.110" Quick Connect tabs terminals included - .04" -.31" 1-8mm 3/4" (19mm)
20mA 738-41630
60,000 -30˚C to 85˚C -22˚F to 185˚F 6" Bare Pigtails 0.187" Quick Connect tabs 14 AWG .04" -.24" 1-6mm 3/4" (19mm)
738-41800 Blue OFF
Mounting Hole Diameter Regulatory IP67 - protected against immersion up to 1 meter
15A BACKLIT PUSH BUTTON SWITCHES • Backlit button is blue when OFF and red when ON • Five ICON labels included: Accessory, Lights,
Anchor Light, Running Light, and Bilge Pump • Additional 50 ICON label kit sold separately
ORDER NO.
738-41800
738-41810
( )= Momentary
Mfr. No. LED Action
4180 Blue/ Red OFF-ON
4181 Blue/ Red OFF-(ON)
5 Included ICON Labels
For more information see: www.bluesea.com
271
