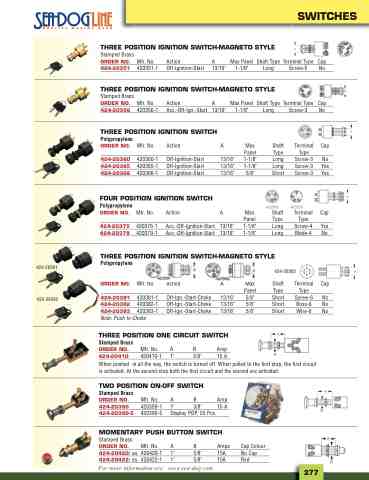

Page 309 - 2025 Parts & Accessories Catalogue

SWITCHES
THREE POSITION IGNITION SWITCH-MAGNETO STYLE
Stamped Brass ORDER NO. Mfr. No. Action A Max Panel Shaft Type Terminal Type
424-20351 420351-1 Off-Ignition-Start 13/16" 1-1/8" Long Screw-5
THREE POSITION IGNITION SWITCH-MAGNETO STYLE
Cap
No
Cap
No
Cap
No
Yes
Yes
Cap
Yes
No
Cap
No
No
No
Stamped Brass ORDER NO. Mfr. No. Action A
424-20356 420356-1 Acc.-Off-Ign.-Start 13/16"
THREE POSITION IGNITION SWITCH
Max Panel Shaft Type Terminal Type
Polypropylene
ORDER NO.
424-20360
424-20365
424-20366
Mfr. No. Action A
1-1/8" Long
Max Shaft Panel Type
Screw-3
Terminal Type
Screw-3
Screw-3
Screw-3
Terminal Type
Screw-4
Blade-4
420360-1 Off-Ignition-Start 13/16" 1-1/8" Long
420365-1 Off-Ignition-Start 13/16" 1-1/8" Long
420366-1 Off-Ignition-Start 13/16" 5/8" Short
424-20381
424-20383
FOUR POSITION IGNITION SWITCH
Polypropylene
ORDER NO. Mfr. No. Action A Max Shaft Panel Type
424-20375 420375-1 Acc.-Off-Ignition-Start 13/16" 1-1/8" Long
424-20379 420379-1 Acc.-Off-Ignition-Start 13/16" 1-1/8" Long
THREE POSITION IGNITION SWITCH-MAGNETO STYLE
Polypropylene
ORDER NO.
424-20381
424-20382
424-20383
424-20383
Mfr. No. Action A Max Shaft Panel Type
420381-1 Off-Ign.-Start-Choke 13/16" 5/8" Short
420382-1 Off-Ign.-Start-Choke 13/16" 5/8" Short
420383-1 Off-Ign.-Start-Choke 13/16" 5/8" Short
Terminal Type
Screw-6
Boss-6
Wire-6
Note: Push to Choke
THREE POSITION ONE CIRCUIT SWITCH
Stamped Brass
ORDER NO. Mfr. No. A B Amp
424-20410 420410-1 1" 3/8" 15 A
When pushed in all the way, the switch is turned off. When pulled to the first stop, the first circuit is activated. At the second stop both the first circuit and the second are activated.
TWO POSITION ON-OFF SWITCH
Stamped Brass
ORDER NO.
424-20390
424-20390-5
Mfr. No.
420390-1
420390-5
A B Amp
1" 3/8" 15 A
Display POP, 25 Pcs.
MOMENTARY PUSH BUTTON SWITCH
Stamped Brass ORDER NO. Mfr. No. A
424-20420/ ea. 420420-1 1"
424-20422/ ea. 420422-1 1"
B Amps
5/8" 15A
5/8" 15A
Cap Colour
No Cap
Red
For more information see: www.sea-dog.com
277
