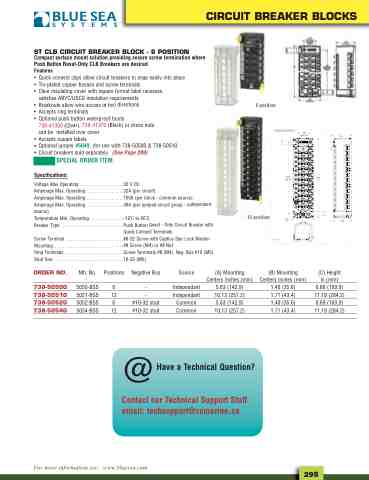

Page 327 - 2025 Parts & Accessories Catalogue

CIRCUIT BREAKER BLOCKS
ST CLB CIRCUIT BREAKER BLOCK - 6 POSITION
Compact surface mount solution providing secure screw termination where Push Button Reset-Only CLB Breakers are desired Features • Quick connect clips allow circuit breakers to snap easily into place
• Tin-plated copper busses and screw terminals • Clear insulating cover with square format label recesses,
satisfies ABYC/USCG insulation requirements • Breakouts allow wire access in two directions • Accepts ring terminals • Optional push button waterproof boots
738-41350 (Clear), 738-41370 (Black) or dress nuts
can be installed over cover • Accepts square labels • Optional jumper #5049, (for use with 738-50500 & 738-50510 • Circuit breakers sold separately. (See Page 289)
SPECIAL ORDER ITEM
6 position
␣␣ ␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣
␣ ␣␣␣␣ ␣
Specifications:
Voltage Max Operating . . . . .
␣
␣
␣
12 position
␣␣␣␣␣
␣␣␣␣␣ ␣␣␣␣␣␣␣
Amperage Max. Operating Amperage Max. Operating Amperage Max. Operating source)
. . . . . .
. . . . . . . . . . . . .32 V DC . . . . . . . . . . . . .32A (per circuit) . . . . . . . . . . . . .100A (per block - common source) . . . . . . . . . . . . .40A (per jumped circuit group - independent
. . . . . . . . . . . . .-10˚C to 60˚C . . . . . . . . . . . . .Push Button Reset - Only Circuit Breaker with
Quick Connect Terminals . . . . . . . . . . . . .#8-32 Screw with Captive Star Lock Washer
. . . . . . . . . . . . .#8 Screw (M4) or #8 Nut . . . . . . . . . . . . .Screw Terminals #8 (M4), Neg. Bus #10 (M5) . . . . . . . . . . . . .10-32 (M5)
Temperature Min. Operating
␣␣␣␣ ␣ ␣␣␣␣ ␣ ␣␣␣␣
␣ ␣␣␣␣ ␣
Breaker Type . .
Screw Terminal Mounting . . . . . Ring Terminals . Stud Size . . . . .
ORDER NO.
738-50500 738-50510 738-50520 738-50540
. . . . . . . . . .
. ........ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
␣
␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣␣
Mfr. No.
Positions
Negative Bus
-
- #10-32 stud #10-32 stud
Source
Independant Independant Common Common
(A) Mounting Centers inches (mm) 5.63 (142.9) 10.13 (257.2) 5.63 (142.9) 10.13 (257.2)
(B) Mounting Centers inches (mm) 1.40 (35.6) 1.71 (43.4) 1.40 (35.6) 1.71 (43.4)
(C) Height in (mm) 6.69 (169.9) 11.19 (284.2) 6.69 (169.9) 11.19 (284.2)
5050-BSS 6 5051-BSS 12 5052-BSS 6 5054-BSS 12
