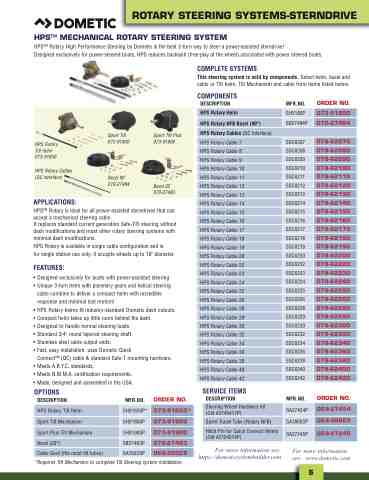

Page 37 - 2025 Parts & Accessories Catalogue

ROTARY STEERING SYSTEMS-STERNDRIVE
HPSTM MECHANICAL ROTARY STEERING SYSTEM
HPSTM Rotary High Performance Steering by Dometic is the best 3-turn way to steer a power-assisted sterndrive! Designed exclusively for power-steered boats, HPS reduces backlash (free-play at the wheel) associated with power steered boats.
COMPLETE SYSTEMS
This steering system is sold by components. Select helm, bezel and cable or Tilt helm, Tilt Mechanism and cable from items listed below.
HPS Rotary Tilt Helm 073-91650
HPS Rotary Cables (QC interface)
APPLICATIONS:
Sport Tilt 073-91800
Bezel 90˚ 070-27484
Sport Tilt Plus 073-91900
Bezel 20˚ 070-27483
COMPONENTS
DESCRIPTION
HPS Rotary Helm
HPS Rotary NFB Bezel (90°)
HPS Rotary Cables (QC Interface)
HPS Rotary Cable 7'
HPS Rotary Cable 8'
HPS Rotary Cable 9'
HPS Rotary Cable 10'
HPS Rotary Cable 11'
HPS Rotary Cable 12'
HPS Rotary Cable 13'
HPS Rotary Cable 14'
HPS Rotary Cable 15'
HPS Rotary Cable 16'
HPS Rotary Cable 17'
HPS Rotary Cable 18'
HPS Rotary Cable 19'
HPS Rotary Cable 20'
HPS Rotary Cable 22'
HPS Rotary Cable 23'
HPS Rotary Cable 24'
HPS Rotary Cable 25'
HPS Rotary Cable 26'
HPS Rotary Cable 28'
HPS Rotary Cable 29'
HPS Rotary Cable 30'
HPS Rotary Cable 32'
HPS Rotary Cable 34'
HPS Rotary Cable 36'
HPS Rotary Cable 38'
HPS Rotary Cable 40'
HPS Rotary Cable 42'
SERVICE ITEMS
MFR.NO.
SH5180P
SB27484P
SSC6207
SSC6208
SSC6209
SSC6210
SSC6211
SSC6212
SSC6213
SSC6214
SSC6215
SSC6216
SSC6217
SSC6218
SSC6219
SSC6220
SSC6222
SSC6223
SSC6224
SSC6225
SSC6226
SSC6228
SSC6229
SSC6230
SSC6232
SSC6234
SSC6236
SSC6238
SSC6240
SSC6242
ORDER NO.
073-51800
070-27484
078-62070
078-62080
078-62090
078-62100
078-62110
078-62120
078-62130
078-62140
078-62150
078-62160
078-62170
078-62180
078-62190
078-62200
078-62220
078-62230
078-62240
078-62250
078-62260
078-62280
078-62290
078-62300
078-62320
078-62340
078-62360
078-62380
078-62400
078-62420
ORDER NO. 069-27454 069-38603 069-27245
HPSTM Rotary is ideal for all power-assisted sterndrives that can accept a mechanical steering cable. It replaces standard current generation Safe-T® steering without dash modifications and most other rotary steering systems with minimal dash modifications.
HPS Rotary is available in single cable configuration and is for single station use only. It accepts wheels up to 16" diameter.
FEATURES:
• Designed exclusively for boats with power-assisted steering • Unique 3-turn helm with planetary gears and helical steering
cable combine to deliver a compact helm with incredible
response and minimal lost motion! • HPS Rotary helms fit industry-standard Dometic dash cutouts. • Compact helm takes up little room behind the dash. • Designed to handle normal steering loads. • Standard 3/4" round tapered steering shaft. • Stainless steel cable output ends. • Fast, easy installation: uses Dometic Quick
ConnectTM (QC) cable & standard Safe-T mounting hardware. • Meets A.B.Y.C. standards. • Meets N.M.M.A. certification requirements. • Made, designed and assembled in the USA.
OPTIONS
DESCRIPTION MFR.NO.
ORDER NO.
073-91650*
073-91800
073-91900
070-27483
069-39329
DESCRIPTION MFR.NO.
HPS Rotary Tilt Helm Sport Tilt Mechanism Sport Plus Tilt Mechanism Bezel (20°)
Cable Gard (fits most tilt tubes)
SH91650P*
SH91800P
SH91900P
SB27483P
SA39329P
Steering Wheel Hardware Kit (Old #2745417P)
Spent Travel Tube (Rotary NFB)
Hitch Pin for Quick Connect Helms (Old #2724514P)
For more information see: https://dometicsystembuilder.com
SA27454P SA38603P
SA27245P
*Requires Tilt Mechanism to complete Tilt Steering system installation.
For more information see: www.dometic.com
