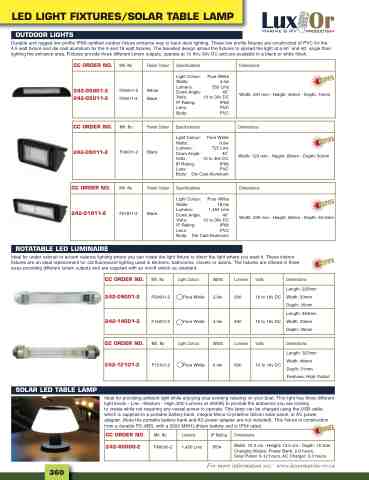

Page 392 - 2025 Parts & Accessories Catalogue

LED LIGHT FIXTURES/SOLAR TABLE LAMP
OUTDOOR LIGHTS
Durable and rugged low profile IP68 certified outdoor fixture entrance way or back deck lighting. These low profile fixtures are constructed of PVC for the 4.5 watt fixture and die cast aluminum for the 9 and 18 watt fixtures. The bevelled design allows the fixtures to spread the light at a 60˚ and 40˚ angle thus lighting the entrance area. Fixtures provide three different lumen outputs, operate at 10 thru 30v DC and are available in a black or white finish.
CC ORDER NO.
242-05001-2 242-05011-2
CC ORDER NO.
242-09011-2
CC ORDER NO.
242-01811-2
ROTATABLE LED LUMINAIRE
Mfr. No
F05001-2 F05011-2
Mfr. No
F09011-2
Mfr. No
F01811-2
Finish Colour
White Black
Finish Colour
Black
Finish Colour
Black
Specifications
Light Colour: Watts: Lumens: Down Angle: Volts:
IP Rating: Lens: Body:
Specifications
Dimensions
Width: 231 mm - Height: 40mm - Depth: 10mm
Dimensions
Width: 129 mm - Height: 68mm - Depth: 50mm
Dimensions
Width: 229 mm - Height: 68mm - Depth: 50.5mm
Pure White 4.5w 550 Lms 60˚ 10to30vDC IP68 PVC PVC
Specifications
Pure White 9.0w 725 Lms 40˚ 10 to 30v DC IP68 PVC Body: Die Cast Aluminum
Light Colour: Watts: Lumens: Down Angle: Volts:
IP Rating: Lens:
Pure White 18.0w 1,450 Lms 40˚ 10 to 30v DC IP68 PVC Body: Die Cast Aluminum
Light Colour: Watts: Lumens: Down Angle: Volts:
IP Rating: Lens:
Ideal for under cabinet or accent valance lighting where you can rotate the light fixture to direct the light where you want it. These interior fixtures are an ideal replacement for old fluorescent lighting used in kitchens, bathrooms, closets or salons. The fixtures are offered in three sizes providing different lumen outputs and are supplied with an on/off switch as standard.
CC ORDER NO. 242-09001-2
242-14001-2
CC ORDER NO.
242-12101-2
Mfr. No
F09001-2
F14001-2
Mfr. No
F12101-2
Light Colour
Pure White
Pure White
Light Colour
Pure White
Watts Lumens
2.0w 200
4.0w 400
Watts Lumens
6.0w 600
Volts
10to16vDC
10to16vDC
Volts
10to16vDC
Dimensions
Length: 225mm Width: 33mm Depth: 35mm Length: 343mm Width: 33mm Depth: 35mm
Dimensions
Length: 327mm Width: 46mm Depth: 51mm Features: High Output
SOLAR LED TABLE LAMP
Ideal for providing ambient light while enjoying your evening relaxing on your boat. This light has three different light levels - Low - Medium - High (400 Lumens at 4000K) to provide the ambience you are looking to create while not requiring any vessel power to operate. This lamp can be charged using the USB cable which is supplied to a portable battery bank, integral Mono-Crystalline Silicon solar panel, or AC power adapter. (Note the portable battery bank and AC power adapter are not included). This fixture is construction from a durable PC-ABS, with a 2200 MAH Lithium battery and is IP54 rated.
CC ORDER NO. 242-40000-2
Mfr. No
F40000-2
Lumens
IP Rating Dimensions
1,450 Lms
IP54
Width: 15.3 cm - Height: 13.5 cm - Depth: 15.3cm Charging Modes: Power Bank: 2-3 hours, Solar Panel: 6-12 hours, AC Charger: 2-3 hours
For more information see: www.luxormarine-rv.ca
360
