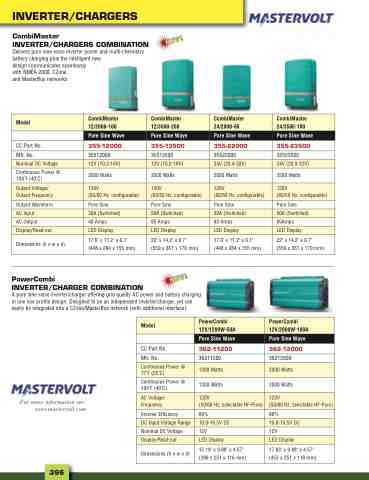

Page 428 - 2025 Parts & Accessories Catalogue

INVERTER/CHARGERS
CombiMaster
INVERTER/CHARGERS COMBINATION
Delivers pure sine wave inverter power and multi-chemistry battery charging plus the intelligent new design communicates seamlessly with NMEA 2000, CZone,
and MasterBus networks
Model
CC Part No.
CombiMaster 12/2000-100
Pure Sine Wave
CombiMaster 12/3500-200
Pure Sine Wave
CombiMaster 24/2000-60
Pure Sine Wave
CombiMaster 24/3500-100
Pure Sine Wave
355-12000 355-13500 355-22000 355-23500
Mfr. No. 35512000 35513500 35522000 35523500
Nominal DC Voltage
Continuous Power @ 104˚F (40˚C)
Output Voltage/ Output Frequency
Output Waveform
AC Input
AC Output
Display/Read-out
Dimensions (h x w x d)
PowerCombi
12V (10.2-16V)
2000 Watts
120V (50/60 Hz, configurable)
Pure Sine
30A (Switched)
40 Amps
LED Display
17.6" x 11.2" x 6.1" (448 x 284 x 155 mm)
12V (10.2-16V)
3500 Watts
120V (60/50 Hz, configurable)
Pure Sine
50A (Switched)
85 Amps
LED Display
22" x 14.2" x 6.7" (559 x 361 x 170 mm)
24V (20.4-32V)
2000 Watts
120V (60/50 Hz, configurable)
Pure Sine
30A (Switched)
40 Amps
LED Display
17.6" x 11.2" x 6.1" (448 x 284 x 155 mm)
24V (20.0-32V)
3500 Watts
120V (60/50 Hz, configurable)
Pure Sine
50A (Switched)
85Amps
LED Display
22" x 14.2" x 6.7" (559 x 361 x 170 mm)
PowerCombi 12V/2000W-100A
Pure Sine Wave
INVERTER/CHARGER COMBINATION
A pure sine wave inverter/charger offering grid quality AC power and battery charging in one low profile design. Designed to be an independent inverter/charger, yet can easily be integrated into a CZone/MasterBus network (with additional interface).
Model
CC Part No.
PowerCombi 12V/1200W-50A
Pure Sine Wave
362-11200 362-12000
Mfr. No. 36211200 36212000
For more information see: www.mastervolt.com
Continuous Power @ 77˚F (25˚C)
Continuous Power @ 104˚F (40˚C)
AC Voltage/ Frequency
Inverter Efficiency
DC Input Voltage Range
Nominal DC Voltage
Display/Read-out
Dimensions (h x w x d)
1200 Watts
1200 Watts
120V (50/60 Hz, selectable HF-Pure)
89%
10.0-15.5V DC
12V
LED Display
15.19" x 9.88" x 4.57" (386 x 251 x 116 mm)
2000 Watts
2000 Watts
120V (50/60 Hz, selectable HF-Pure)
89%
10.0-15.5V DC
12V
LED Display
17.83" x 9.88" x 4.57" (453 x 251 x 116 mm)
396
