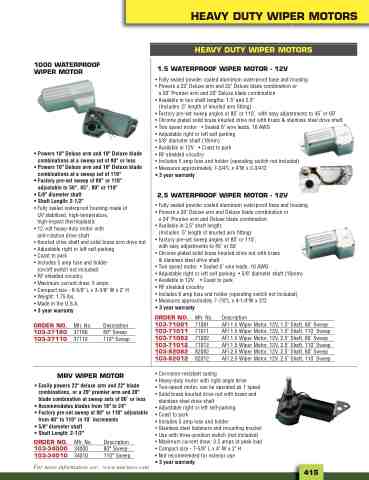

Page 447 - 2025 Parts & Accessories Catalogue

HEAVY DUTY WIPER MOTORS
1000 WATERPROOF WIPER MOTOR
1.5 WATERPROOF WIPER MOTOR - 12V
• Fully sealed powder coated aluminum waterproof base and housing • Powers a 22" Deluxe arm and 22" Deluxe blade combination or
a 20" Premier arm and 20" Deluxe blade combination • Available in two shaft lengths: 1.5" and 2.5"
(Includes .5" length of knurled arm fitting) • Factory pre-set sweep angles of 80˚ or 110˚, with easy adjustments to 45˚ or 60˚ • Chrome plated solid brass knurled drive nut with brass & stainless steel drive shaft • Two speed motor • Sealed 6" wire leads, 16 AWG • Adjustable right or left self parking • 5/8" diameter shaft (16mm) • Available in 12V • Coast to park • RF shielded circuitry • Includes 5 amp fuse and holder (operating switch not included) • Measures approximately 7-3/4"L x 4"W x 2-3/4"D • 3 year warranty
2.5 WATERPROOF WIPER MOTOR - 12V
• Fully sealed powder coated aluminum waterproof base and housing • Powers a 26" Deluxe arm and Deluxe blade combination or
HEAVY DUTY WIPER MOTORS
• Powers 18" Deluxe arm and 18" Deluxe blade combinations at a sweep set of 80° or less
• Powers 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110° • Factory pre-set sweep of 80° or 110°
adjustable to 50°, 65°, 80° or 110° • 5/8" diameter shaft • Shaft Length: 2-1/2" • Fully sealed waterproof housing made of
UV stabilized, high-temperature,
high-impact thermoplastic • 12 volt heavy-duty motor with
anti-rotation drive shaft • Knurled drive shaft and solid brass arm drive nut • Adjustable right or left self-parking • Coast to park • Includes 5 amp fuse and holder
(on/off switch not included) • RF shielded circuitry • Maximum current draw: 5 amps • Compact size - 6-5/8" L x 3-3/8" W x 2" H • Weight: 1.75 lbs. • Made in the U.S.A. • 3 year warranty
ORDER NO. Mfr. No. Description
103-37180 37180 80° Sweep
a 24" Premier arm and Deluxe blade combination • Available in 2.5" shaft length:
(Includes .5" length of knurled arm fitting) • Factory pre-set sweep angles of 80˚ or 110˚,
with easy adjustments to 45˚ or 60˚ • Chrome plated solid brass knurled drive nut with brass
& stainless steel drive shaft • Two speed motor • Sealed 6" wire leads, 16 AWG • Adjustable right or left self parking • 5/8" diameter shaft (16mm) • Available in 12V • Coast to park • RF shielded circuitry • Includes 6 amp fuse and holder (operating switch not included) • Measures approximately 7-7/8"L x 4-1/4"W x 3"D • 3 year warranty
103-37110
37110
110° Sweep
ORDER NO. Mfr. No.
103-71081 71081
103-71011 71011
103-71082 71082
103-71012 71012
103-82082 82082
103-82012 82012
Description
AFI 1.5 Wiper Motor, 12V, 1.5" Shaft,
AFI 1.5 Wiper Motor, 12V, 1.5" Shaft,
AFI 1.5 Wiper Motor, 12V, 2.5" Shaft,
AFI 1.5 Wiper Motor, 12V, 2.5" Shaft,
AFI 2.5 Wiper Motor, 12V, 2.5" Shaft,
AFI 2.5 Wiper Motor, 12V, 2.5" Shaft,
80˚ Sweep
110˚ Sweep
80˚ Sweep
110˚ Sweep
80˚ Sweep
110˚ Sweep
MRV WIPER MOTOR
• Corrosion-resistant casing • Heavy-duty motor with right angle drive • Two-speed motor, can be operated as 1 speed • Solid brass knurled drive nut with brass and
stainless steel drive shaft • Adjustable right or left self-parking • Coast to park • Includes 5 amp fuse and holder • Stainless steel fasteners and mounting bracket • Use with three-position switch (not included) • Maximum current draw: 3.5 amps at peak load • Compact size - 7-5/8" L x 4" W x 2" H • Not recommended for exterior use • 3 year warranty
• Easily powers 22" deluxe arm and 22" blade combinations, or a 20" premier arm and 20" blade combination at sweep sets of 80˚ or less
• Accommodates blades from 16" to 24" • Factory pre-set sweep of 80° or 110° adjustable
from 40° to 110° in 10˚ increments • 5/8" diameter shaft • Shaft Length: 2-1/2"
ORDER NO.
103-34000
103-34010
Mfr. No.
34000
34010
Description
80° Sweep
110° Sweep
For more information see: www.marinco.com
