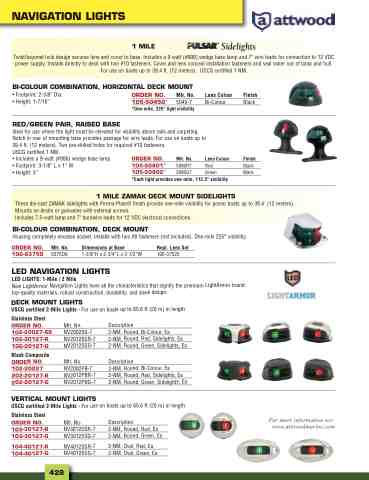

Page 460 - 2025 Parts & Accessories Catalogue

NAVIGATION LIGHTS
1 MILE
Twist/bayonet lock design secures lens and cover to base. Includes a 9-watt (#906),wedge base lamp and 7" wire leads for connection to 12 VDC power supply. Installs directly to deck with two #10 fasteners. Cover and lens conceal installation fasteners and seal water out of lamp and hull. For use on boats up to 39.4 ft. (12 meters). USCG certified 1 NM.
BI-COLOUR COMBINATION, HORIZONTAL DECK MOUNT
• Footprint: 2-3/8” Dia. ORDER NO. Mfr. No.
• Height: 1-7/16” 105-50450* 5045-7
*One-mile, 225° light visibility
RED/GREEN PAIR, RAISED BASE
Ideal for use where the light must be elevated for visibility above rails and carpeting. Notch in rear of mounting base provides passage for wire leads. For use on boats up to 39.4 ft. (12 meters). Two pre-drilled holes for required #10 fasteners. USCG certified 1 NM.
Lens Colour
Bi-Colour
Finish
Black
Finish
Black
Black
• Includes a 9-watt (#906) wedge base lamp • Footprint: 3-1/8” L x 1” W • Height: 3”
ORDER NO.
105-50801*
105-50802*
Mfr. No. Lens Colour
5080R7 Red
5080G7 Green
*Each light provides one-mile, 112.5° visibility
1 MILE ZAMAK DECK MOUNT SIDELIGHTS
These die-cast ZAMAK sidelights with Perma-Plate® finish provide one-mile visibility for power boats up to 39.4' (12 meters). Mounts on decks or gunwales with external screws. Includes 7.5-watt lamp and 7" hardwire leads for 12 VDC electrical connections.
BI-COLOUR COMBINATION, DECK MOUNT
Housing completely encases socket. Installs with two #8 fasteners (not included). One-mile 225° visibility.
ORDER NO. Mfr. No. Dimensions at Base Repl. Lens Set
106-63750 6375D6 1-3/8”H x 2-3/4”L x 2-1/2”W 106-37525
For more information see: www.attwoodmarine.com
428
LED NAVIGATION LIGHTS
LED LIGHTS: 1-Mile / 2 Mile
New LightArmor Navigation Lights have all the characteristics that signify the premium LightArmor brand: top-quality materials, robust construction, durability, and sleek design.
DECK MOUNT LIGHTS
USCG certified 2-Mile Lights - For use on boats up to 65.6 ft (20 m) in length Stainless Steel
ORDER NO. 102-20027-SS 102-20127-R 102-20127-G
Black Composite
ORDER NO. 102-20027 202-20127-R 202-20127-G
Mfr. No.
NV2002SS-7
NV2012SSR-7
NV2012SSG-7
Mfr. No.
NV2002PB-7
NV2012PBR-7
NV2012PBG-7
Description
2-NM, Round, Bi-Colour, Ea
2-NM, Round, Red, Sidelights, Ea
2-NM, Round, Green, Sidelights, Ea
Description
2-NM, Round, Bi-Colour, Ea
2-NM, Round, Red, Sidelights, Ea
2-NM, Round, Green, Sidelights, Ea
VERTICAL MOUNT LIGHTS
USCG certified 2-Mile Lights - For use on boats up to 65.6 ft (20 m) in length Stainless Steel
ORDER NO. 103-30127-R 103-30127-G
104-40127-R 104-40127-G
Mfr. No.
NV3012SSR-7
NV3012SSG-7
NV4012SSR-7
NV4012SSG-7
Description
2-NM, Round, Red, Ea
2-NM, Round, Green, Ea
2-NM, Oval, Red, Ea
2-NM, Oval, Green, Ea
