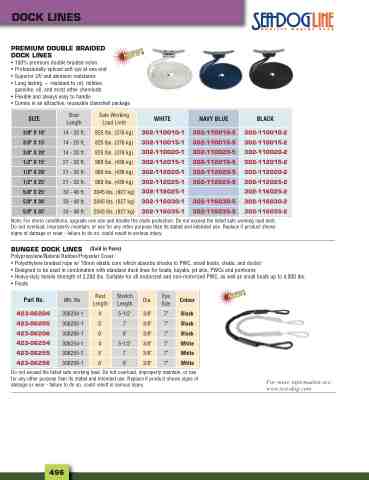

Page 528 - 2025 Parts & Accessories Catalogue

DOCK LINES
PREMIUM DOUBLE BRAIDED DOCK LINES • 100% premium double braided nylon • Professionally spliced soft eye at one end • Superior UV and abrasion resistance
• Long lasting – resistant to rot, mildew, gasoline, oil, and most other chemicals
• Flexible and always easy to handle • Comes in an attractive, reuseable clamshell package
SIZE
3/8" X 10'
3/8" X 15'
3/8" X 20'
1/2" X 15'
1/2" X 20'
1/2" X 25'
5/8" X 25'
5/8" X 30'
5/8" X 35'
Boat Length
14-20ft.
14-20ft.
14-20ft.
21-32ft.
21-32ft.
21-32ft.
33-48ft.
33-48ft.
33-48ft.
Safe Working Load Limit
825 lbs. (376 kg)
825 lbs. (376 kg)
825 lbs. (376 kg)
960 lbs. (438 kg)
960 lbs. (438 kg)
960 lbs. (438 kg)
2045 lbs. (927 kg)
2045 lbs. (927 kg)
2045 lbs. (927 kg)
WHITE
NAVY BLUE
BLACK
302-110010-1 302-110010-5 302-110010-2
302-110015-1 302-110015-5 302-110015-2
302-110020-1 302-110020-5 302-110020-2
302-112015-1 302-112015-5 302-112015-2
302-112020-1 302-112020-5 302-112020-2
302-112025-1 302-112025-5 302-112025-2
302-116025-1 302-116025-2
302-116030-1 302-116030-5 302-116030-2
302-116035-1 302-116035-5 302-116035-2
Note: For storm conditions, upgrade one size and double the chafe protection. Do not exceed the listed safe working load limit. Do not overload, improperly maintain, or use for any other purpose than its stated and intended use. Replace if product shows signs of damage or wear - failure to do so, could result in serious injury.
BUNGEE DOCK LINES
(Sold in Pairs)
Polypropylene/Natural Rubber/Polyester Cover • Polyethylene braided rope w/ 10mm elastic core which absorbs shocks to PWC, small boats, cleats, and docks! • Designed to be used in combination with standard dock lines for boats, kayaks, jet skis, PWCs and pontoons • Heavy-duty tensile strength of 2,200 lbs. Suitable for all motorized and non-motorized PWC, as well as small boats up to 4,000 lbs. • Floats
Part No.
423-06204 423-06205 423-06206 423-06254 423-06255 423-06256
Mfr. No.
306204-1 306205-1 306206-1 306254-1 306255-1 306256-1
Rest Stretch Eye Dia.
Colour
Black Black Black White White White
Length Length Size
4' 5-1/2' 5' 7' 6' 9' 4' 5-1/2' 5' 7' 6' 9'
3/8" 7" 3/8" 7" 3/8" 7" 3/8" 7" 3/8" 7" 3/8" 7"
Do not exceed the listed safe working load. Do not overload, improperly maintain, or use for any other purpose than its stated and intended use. Replace if product shows signs of damage or wear - failure to do so, could result in serious injury.
For more information see: www.sea-dog.com
496
