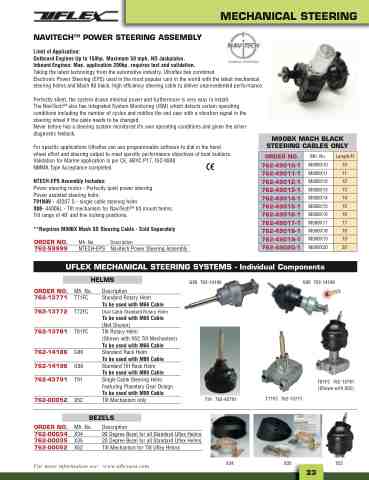

Page 55 - 2025 Parts & Accessories Catalogue

MECHANICAL STEERING
NAVITECHTM POWER STEERING ASSEMBLY
Limit of Application: Outboard Engines Up to 150hp, Maximum 50 mph, NO Jackplates. Inboard Engines: Max. application 200hp, requires test and validation. Taking the latest technology from the automotive industry, Ultraflex has combined Electronic Power Steering (EPS) used in the most popular cars in the world with the latest mechanical steering helms and Mach 90 black, high efficiency steering cable to deliver unprecedented performance.
Perfectly silent, the system draws minimal power and furthermore is very easy to install. The NaviTechTM also has Integrated System Monitoring (ISM) which detects certain operating conditions including the number of cycles and notifies the end user with a vibration signal in the steering wheel if the cable needs to be changed. Never before has a steering system monitored it’s own operating conditions and given the driver diagnostic feeback.
For specific applications Ultraflex can use programmable software to dial in the hand wheel effort and steering output to meet specific performance objectives of boat builders. Validation for Marine application is per CE, ABYC P17, ISO 8848. NMMA Type Acceptance completed.
NTECH-EPS Assembly Includes:
Power steering motor - Perfectly quiet power steering Power assisted steering helm: T91NAV - 43207 S - single cable steering helm X88- 44006L - Tilt mechanism for NaviTechTM tilt mount helms. Tilt range of 48˚ and five locking positions.
**Requires M90BX Mach SS Steering Cable - Sold Separately
ORDER NO. Mfr. No. Description
762-59999 NTECH-EPS Navitech Power Steering Assembly
M90BX MACH BLACK STEERING CABLES ONLY
Mfr. No. M90BX10 10' M90BX11 11' M90BX12 12' M90BX13 13' M90BX14 14' M90BX15 15' M90BX16 16' M90BX17 17' M90BX18 18' M90BX19 19' M90BX20 20'
UFLEX MECHANICAL STEERING SYSTEMS - Individual Components
HELMS
G86 762-14186
G96 762-14196
T81FC 762-13781 (Shown with X52)
ORDER NO.
762-13771
762-13772
762-13781
762-14186
762-14196
762-43791
762-00052
ORDER NO.
762-00034
762-00035
762-00052
Mfr. No.
T71FC
T72FC
T81FC
G86
G96
T91
X52
Mfr.
X34
X35
X52
Description
Standard Rotary Helm
To be used with M66 Cable
Dual Cable Standard Rotary Helm
To be used with M66 Cable
(Not Shown)
Tilt Rotary Helm (Shown with X52 Tilt Mechanism) To be used with M66 Cable
Standard Rack Helm
To be used with M86 Cable
Standard Tilt Rack Helm
To be used with M86 Cable
Single Cable Steering Helm Featuring Planetary Gear Design To be used with M90 Cable
Tilt Mechanism only
BEZELS
T91 762-43791
T71FC
762-13771
ORDER NO. 762-49010-1 762-49011-1 762-49012-1 762-49013-1 762-49014-1 762-49015-1 762-49016-1 762-49017-1 762-49018-1 762-49019-1 762-49020-1
Length/Ft
No.
Description
90 Degree Bezel for all Standard Uflex Helms
20 Degree Bezel for all Standard Uflex Helms
Tilt Mechanism for Tilt Uflex Helms
For more information see: www.uflexusa.com
X34
X35
X52
