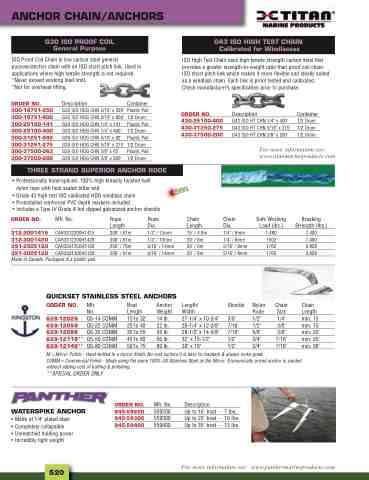

Page 552 - 2025 Parts & Accessories Catalogue

ANCHOR CHAIN/ANCHORS
G43 ISO HIGH TEST CHAIN Calibrated for Windlasses
G30 ISO PROOF COIL General Purpose
ISO Proof Coil Chain is low carbon steel general purpose/anchor chain with an ISO short pitch link. Used in applications where high tensile strength is not required. *Never exceed working load limit. *Not for overhead lifting.
ISO High Test Chain uses high tensile strength carbon steel that provides a greater strength-to-weight ratio than proof coil chain. ISO short pitch link which makes it more flexible and ideally suited as a windlass chain. Each link is proof tested and calibrated. Check manufacturer’s specification prior to purchase
ORDER NO.
300-18751-250
300-18751-800
300-25100-141
300-25100-400
300-31251-092
300-31251-275
300-37500-063
300-37500-200
Description
G30 ISO HDG CHN 3/16" x 250'
G30 ISO HDG CHN 3/16" x 800'
G30 ISO HDG CHN 1/4" x 141'
G30 ISO HDG CHN 1/4" x 400'
G30 ISO HDG CHN 5/16" x 92'
G30 ISO HDG CHN 5/16" x 275'
G30 ISO HDG CHN 3/8" x 63'
G30 ISO HDG CHN 3/8" x 200'
Container
Plastic Pail
1/2 Drum
Plastic Pail
1/2 Drum
Plastic Pail
1/2 Drum
Plastic Pail
1/2 Drum
ORDER NO.
430-25100-400
430-31250-275
430-37500-200
Chain Length
15' / 4.6m
20' / 6m
20' / 6m
20' / 6m
Length/ Width
27-1/4" x 10-3/4"
26-1/4" x 12-3/8"
28-1/2" x 14-5/8"
32" x 15-1/2"
39" x 18"
Description
G43 ISO HT CHN 1/4" x 400'
G43 ISO HT CHN 5/16" x 275'
G43 ISO HT CHN 3/8" x 200'
Container
1/2 Drum
1/2 Drum
1/2 Drum
For more information see: www.titanmarineproducts.com
THREE STRAND SUPERIOR ANCHOR RODE
• Professionally hand-spliced, 100% high tenacity twisted twill nylon rope with heat sealed bitter end
• Grade 43 high test ISO calibrated HDG windlass chain • Preinstalled reinforced PVC depth markers included • Includes a Type IV Grade A hot dipped galvanized anchor shackle
ORDER NO.
312-2001415
312-3001420
391-2505120
391-3005120
Mfr. No.
CAR3S12200H1415
CAR3S12300H1420
CAR3S91250H5120
CAR3S91300H5120
Rope Length
200' / 61m
300' / 91m
250' / 76m
300' / 91m
Rope Dia.
1/2" / 13mm
1/2" / 13mm
9/16" / 14mm
9/16" / 14mm
Chain Dia.
1/4" / 6mm
1/4" / 6mm
5/16" / 8mm
5/16" / 8mm
Shackle
3/8"
7/16"
7/16"
1/2"
1/2"
Safe Working Load (lbs.)
1,480
1502
1760
1760
Nylon Chain Rode Size
1/2" 1/4"
1/2" 3/8"
5/8" 3/8"
3/4" 7/16"
3/4" 7/16"
Breaking Strength (lbs.)
7,400
7,400
9,828
9,828
Chain Length
min. 15'
min. 15'
min. 20'
min. 25'
min. 36'
Made in Canada. Packaged in a plastic pail.
QUICKSET STAINLESS STEEL ANCHORS
ORDER NO.
628-12028
628-12058
628-12088
628-12118**
628-12148**
Mfr. No.
QS-14 COMM
QS-22 COMM
QS-35 COMM
QS-50 COMM
QS-80 COMM
Boat Length
15'to 32'
25'to 40'
35'to 55'
45'to 60'
50'to 75'
Anchor Weight
14 lb.
22 lb.
35 lb.
50 lb.
80 lb.
M = Mirror Polish - Hand-buffed to a mirror finish. No-rust surface it is easy to maintain & always looks great. COMM = Commercial Finish - Made using the same 100% US Stainless Steel as the Mirror. Economically priced anchor is sanded without adding cost of buffing & polishing. **SPECIAL ORDER ONLY
WATERSPIKE ANCHOR
• Made of 1/4" plated steel • Completely collapsible • Unmatched holding power • Incredibly light weight
ORDER NO.
945-59200
945-59300
945-59400
Mfr. No.
559200
559300
559400
Description
Up to 16' boat - 7 Ibs.
Up to 22' boat - 10 Ibs.
Up to 35' boat - 13 Ibs.
For more information see: www.panthermarineproducts.com
520
