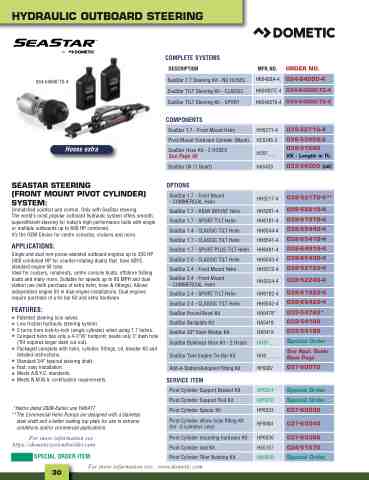

Page 62 - 2025 Parts & Accessories Catalogue

HYDRAULIC OUTBOARD STEERING
034-64000-TS-4
Hoses extra
SEASTAR STEERING
(FRONT MOUNT PIVOT CYLINDER)
SYSTEM:
Unmatched comfort and control. Only with SeaStar steering. The world’s most popular outboard hydraulic system offers smooth, superefficient steering for today’s high performance hulls with single or multiple outboards up to 600 HP combined. It’s the OEM Choice for centre consoles, cruisers and more.
APPLICATIONS:
Single and dual non-power-assisted outboard engines up to 350 HP (600 combined HP for counter-rotating duals) that have ABYC standard engine tilt tube. Ideal for cruisers, runabouts, centre console boats, offshore fishing boats and many more. Suitable for speeds up to 60 MPH and dual station use (with purchase of extra helm, hose & fittings). Allows independent engine tilt in dual engine installations. Dual engines require purchase of a tie bar Kit and extra hardware.
FEATURES:
• Patented steering lock valves. • Low friction hydraulic steering system. • 5 turns from lock-to-lock (single cylinder) when using 1.7 helms. • Compact helm has only a 4-7/16" footprint; needs only 3" dash hole
(Tilt requires larger dash cut out). • Packaged complete with helm, cylinder, fittings, oil, bleeder Kit and
detailed instructions. • Standard 3/4" tapered steering shaft. • Fast, easy installation. • Meets A.B.Y.C. standards. • Meets N.M.M.A. certification requirements.
*Helms dated 2008-Earlier use HA5417 **The Commercial Helm Pumps are designed with a stainless
steel shaft and a better sealing top plate for use in extreme conditions and/or commercial applications.
For more information see: https://dometicsystembuilder.com
SPECIAL ORDER ITEM
COMPLETE SYSTEMS
DESCRIPTION
SeaStar 1.7 Steering Kit - NO HOSES SeaStar TILT Steering Kit - CLASSIC SeaStar TILT Steering Kit - SPORT
COMPONENTS
SeaStar 1.7 - Front Mount Helm
Pivot Mount Outboard Cylinder (Black)
SeaStar Hose Kit - 2 HOSES
See Page 46
SeaStar Oil (1 Quart)
OPTIONS
SeaStar 1.7 - Front Mount - COMMERCIAL Helm
SeaStar 1.7 - REAR MOUNT Helm
SeaStar 1.7 - SPORT TILT Helm
SeaStar 1.4 - CLASSIC TILT Helm
SeaStar 1.7 - CLASSIC TILT Helm
SeaStar 1.7 - SPORT PLUS TILT Helm
SeaStar 2.0 - CLASSIC TILT Helm
SeaStar 2.4 - Front Mount Helm
SeaStar 2.4 - Front Mount - COMMERCIAL Helm
SeaStar 2.4 - SPORT TILT Helm
SeaStar 2.4 - CLASSIC TILT Helm
SeaStar Round Bezel Kit
SeaStar Backplate Kit
SeaStar 20° Dash Wedge Kit
SeaStar Bulkhead Hose Kit - 2 Hoses
SeaStar Twin Engine Tie Bar Kit
Add-A-Station/Autopilot Fitting Kit
SERVICE ITEM
Pivot Cylinder Support Bracket Kit
Pivot Cylinder Support Rod Kit
Pivot Cylinder Spacer Kit
Pivot Cylinder elbow hose fitting Kit (for -3 cylinders only)
Pivot Cylinder mounting hardware Kit Pivot Cylinder seal Kit Pivot Cylinder Tiller Bushing Kit
MFR.NO.
HK6400A-4 HK6400TC-4 HK6400TS-4
HH5271-4 HC5345-3
HO51_ _ HA5430
HH5217-4
HH5261-4
HH6191-4
HH6544-4
HH6541-4
HH6491-4
HH6543-4
HH5272-4
HH5224-4
HH6192-4
HH6542-4
HA5478*
HA5418
HA5419
HO81 _ _
HO6___
HF6007
HP6014 HP6016 HP6033
HF6004
HP6036 HS5157 HA5829
ORDER NO. 034-64000-4 034-64000-TC-4 034-64000-TS-4
038-52710-4
036-53450-3
039-51XX0
XX - Length in ft. 033-54300 (x2)
038-52170-4**
038-52610-4
038-61910-4
038-65440-4
038-65410-4
038-64910-4
038-65430-4
038-52720-4
038-52240-4
038-61920-4
038-65420-4
033-54780*
033-54180
033-54190
Special Order
See Appl. Guide Next Page
037-60070
Special Order Special Order 037-60330
037-60040
037-60360 034-51570 Special Order
For more information see: www.dometic.com
