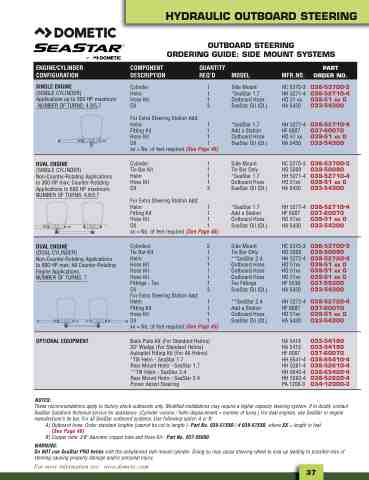

Page 69 - 2025 Parts & Accessories Catalogue

HYDRAULIC OUTBOARD STEERING
OUTBOARD STEERING ORDERING GUIDE: SIDE MOUNT SYSTEMS
ENGINE/CYLINDER CONFIGURATION
SINGLE ENGINE
(SINGLE CYLINDER) Applications up to 300 HP maximum
NUMBER OF TURNS: 4.8/5.7
DUAL ENGINE
(SINGLE CYLINDER) Non-Counter-Rotating Applications to 300 HP max; Counter-Rotating Applications to 600 HP maximum. NUMBER OF TURNS: 4.8/5.7
DUAL ENGINE
(DUAL CYLINDER) Non-Counter-Rotating Applications to 600 HP max; All Counter-Rotating Engine Applications. NUMBER OF TURNS: 7
OPTIONAL EQUIPMENT
NOTES:
COMPONENT DESCRIPTION
Cylinder Helm Hose Kit Oil
For Extra Steering Station Add: Helm Fitting Kit Hose Kit
QUANTITY REQ’D
1 1 1 3
1 1 1 1
1 1 1 1 3
1 1 1 1
2 1 1 1 1 1 1 3
1 1 1 1
MODEL
Side Mount *SeaStar 1.7 Outboard Hose SeaStar Oil (Qt.)
*SeaStar 1.7 Add a Station Outboard Hose SeaStar Oil (Qt.)
Side Mount Tie Bar Only *SeaStar 1.7 Outboard Hose SeaStar Oil (Qt.)
*SeaStar 1.7 Add a Station Outboard Hose SeaStar Oil (Qt.)
Side Mount Tie Bar Only **SeaStar 2.4 Outboard Hose Outboard Hose Outboard Hose Tee Fittings SeaStar Oil (Qt.)
**SeaStar 2.4 Add a Station Outboard Hose SeaStar Oil (Qt.)
MFR.NO.
HC 5370-3 HH 5271-4 HO51xx HA 5430
HH 5271-4 HF 6007 HO51xx HA 5430
HC 5370-3 HO 5009 HH 5271-4 HO 51xx HA 5430
HH 5271-4 HF 6007 HO 51xx HA 5430
HC 5370-3 HO 5009 HH 5272-4 HO 51xx HO 51xx HO 51xx HF 5530 HA 5430
HH 5272-4 HF 6007 HO 51xx HA 5430
HA 5418 HA 5419 HF 6007 HH 6541-4 HH 5261-4 HH 6542-4 HH 5262-4 PA 1200-3
PART ORDER NO.
036-53700-3 038-52710-4 039-51 xx 0 033-54300
038-52710-4 037-60070 039-51 xx 0 033-54300
036-53700-3 039-50090 038-52710-4 039-51 xx 0 033-54300
038-52710-4 037-60070 039-51 xx 0 033-54300
036-53700-3 039-50090 038-52720-4 039-51 xx 0 039-51 xx 0 039-51 xx 0 037-55300 033-54300
038-52720-4 037-60070 039-51 xx 0 033-54300
033-54180 033-54190 037-60070 038-65410-4 038-52610-4 038-65420-4 038-52620-4 034-12000-3
Oil xx = No. of feet required (See Page 46)
Cylinder Tie Bar Kit Helm Hose Kit Oil
For Extra Steering Station Add: Helm Fitting Kit Hose Kit
Oil xx = No. of feet required (See Page 46)
Cylinders Tie Bar Kit Helm Hose Kit Hose Kit Hose Kit Fittings - Tee Oil
For Extra Steering Station Add: Helm Fitting Kit Hose Kit
Oil xx = No. of feet required (See Page 46)
Back Plate Kit (For Standard Helms) 20o Wedge (For Standard Helms) Autopilot Fitting Kit (For All Helms) *Tilt Helm - SeaStar 1.7
Rear Mount Helm - SeaStar 1.7 **Tilt Helm - SeaStar 2.4 Rear Mount Helm - SeaStar 2.4 Power Assist Steering
These recommendations apply to factory stock outboards only. Modified installations may require a higher capacity steering system. If in doubt, contact SeaStar Solutions technical service for assistance. (Cylinder volume / helm displacement = number of turns.) For dual engines, use SeaStar or engine manufacturer’s tie bar. For all SeaStar outboard systems: Use following option A or B:
A) Outboard hose: Order standard lengths (cannot be cut to length.)- Part No. 039-51XX0 / # 039-57XX0, where XX = length in feet. (See Page 46)
B) Copper tube: 3/8" diameter copper tube and Hose Kit - Part No. 037-55080.
WARNING: Do NOT use SeaStar PRO helms with the unbalanced side mount cylinder. Doing so may cause steering wheel to lock up leading to possible loss of steering causing property damage and/or personal injury.
