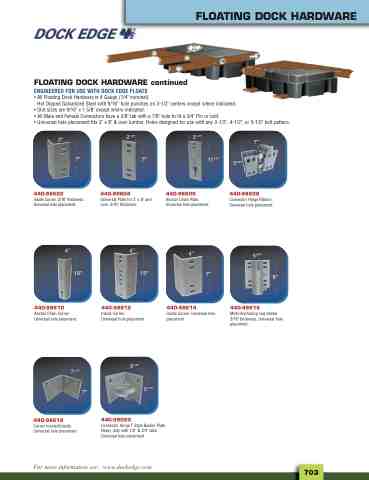

FLOATING DOCK HARDWARE
FLOATING DOCK HARDWARE continued
ENGINEERED FOR USE WITH DOCK EDGE FLOATS
• All Floating Dock Hardware is 4 Gauge (1/4" nominal) Hot Dipped Galvanized Steel with 9/16” hole punches on 3-1/2" centers except where indicated.
• Slot sizes are 9/16" x 1 5/8" except where indicated. • All Male and Female Connectors have a 3/8" tab with a 7/8" hole to fit a 3/4" Pin or bolt. • Universal hole placement fits 2" x 8" & over lumber. Holes designed for use with any 3-1/2", 4-1/2", or 5-1/2" bolt pattern.
3"
440-98602
21/2”
440-98604
31/2”
440-98606
7”
7"
7"
111/2”
55/8”
Inside Corner. 3/16" thickness. Universal hole placement.
Universal Plate for 2' x 8' and over. 3/16" thickness.
Anchor Chain Plate. Universal hole placement.
4”
440-98614
440-98608
Connector Hinge Ribbon. Universal hole placement.
55/8”
440-98616
Multi-Anchoring Leg Holder. 3/16" thickness. Universal hole placement
4”
4”
440-98612
19"
13"
7"
440-98610
Anchor Chain Corner. Universal hole placement.
71/4”
440-98618
Corner Inside/Outside. Universal hole placement
Inside Corner. Universal hole placement
Inside Corner. Universal hole placement.
7”
51/4”
440-99020
51/4”
Connector Hinge T Style Backer Plate. Heavy duty with 1/2" & 3/4" tabs. Universal hole placement.
For more information see: www.dockedge.com
