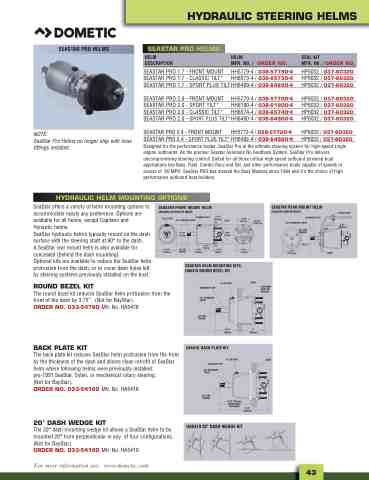

Page 75 - 2025 Parts & Accessories Catalogue

HYDRAULIC STEERING HELMS
SEASTAR PRO HELMS
NOTE: SeaStar Pro Helms no longer ship with hose fittings installed.
SEASTAR PRO HELMS
HELM DESCRIPTION
SEASTAR PRO 1.7 - FRONT MOUNT SEASTAR PRO 1.7 - CLASSIC TILT* SEASTAR PRO 1.7 - SPORT PLUS TILT
HELM MFR. N0. /
HH5779-4 HH6573-4 HH6489-4
SEASTAR PRO 2.0 - FRONT MOUNT SEASTAR PRO 2.0 - SPORT TILT* SEASTAR PRO 2.0 - CLASSIC TILT* SEASTAR PRO 2.0 - SPORT PLUS TILT*HH6490-4
HH5770-4 HH6190-4 HH6574-4
ORDER NO. / 038-57790-4
/ 038-65730-4 / 038-64890-4
/ 038-57700-4 / 038-61900-4 / 038-65740-4 / 038-64900-4
HYDRAULIC HELM MOUNTING OPTIONS
SeaStar offers a variety of helm mounting options to accommodate nearly any preference. Options are available for all helms, except Capilano and Hynautic helms.
SeaStar hydraulic helms typically mount on the dash surface with the steering shaft at 90° to the dash. A SeaStar rear mount helm is also available for concealed (behind the dash mounting).
Optional kits are available to reduce the SeaStar helm protrusion from the dash, or to cover dash holes left by steering systems previously installed on the boat.
ROUND BEZEL KIT
The round bezel kit reduces SeaStar helm protrusion from the front of the dash by 3.75”. (Not for BayStar). ORDER NO. 033-54780 Mfr. No. HA5478
BACK PLATE KIT
The back plate kit reduces SeaStar helm protrusion from the front by the thickness of the dash and allows clean retrofit of SeaStar helm where following helms were previously installed: pre-1991 SeaStar, Syten, or mechanical rotary steering.
(Not for BayStar). ORDER NO. 033-54180 Mfr. No. HA5418
20° DASH WEDGE KIT
The 20° dash mounting wedge kit allows a SeaStar helm to be mounted 20° from perpendicular in any of four configurations. (Not for BayStar). ORDER NO. 033-54190 Mfr. No. HA5419
For more information see: www.dometic.com
SEAL KIT MFR. N0. / ORDER NO.
HP6032 / 037-60320 HP6032 / 037-60320 HP6032 / 037-60320
HP6032 / 037-60320 HP6032 / 037-60320 HP6032 / 037-60320 HP6032 / 037-60320
SEASTAR PRO 2.4 - FRONT MOUNT HH5772-4 SEASTAR PR0 2.4 - SPORT PLUS TILT* HH6492-4 Designed for the performance boater, SeaStar Pro is the ultimate steering system for high-speed single engine outboards. As the premier Seastar Solutions No Feedback System, SeaStar Pro delivers uncompromising steering control! Suited for all those critical high speed outboard powered boat applications like Bass, Flats, Combo Race and Ski, and other performance boats capable of speeds in excess of 60 MPH. SeaStar PRO has steered the Bass Masters since 1994 and it's the choice of high performance outboard boat builders.
/ 038-57720-4 / 038-64920-4
HP6032 / 037-60320 HP6032 / 037-60320
43
