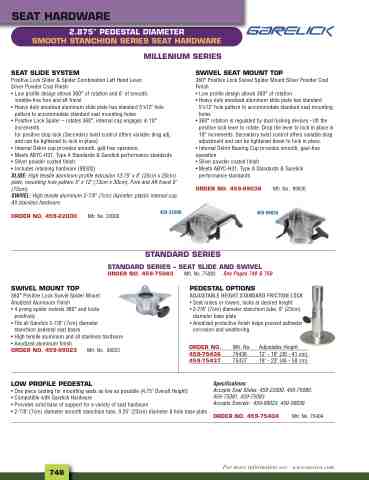

Page 780 - 2025 Parts & Accessories Catalogue

SEAT HARDWARE
2.875" PEDESTAL DIAMETER
SMOOTH STANCHION SERIES SEAT HARDWARE
SEAT SLIDE SYSTEM
Positive Lock Slider & Spider Combination Left Hand Lever, Silver Powder Coat Finish • Low profile design allows 360° of rotation and 6" of smooth,
wobble-free fore and aft travel • Heavy duty anodized aluminum slide plate has standard 5"x12" hole
pattern to accommodate standard seat mounting holes • Positive Lock Spider – rotates 360°, internal cup engages in 10°
increments for positive stop lock (Secondary twist control offers variable drag adj. and can be tightened to lock in place)
• Internal Delrin cup provides smooth, gall-free operation. • Meets ABYC-H31, Type A Standards & Garelick performance standards • Silver powder coated finish • Includes retaining hardware (99302) SLIDE: High tensile aluminum profile extrusion 13.75" x 8" (35cm x 20cm) plate, mounting hole pattern 5" x 12" (13cm x 30cm), Fore and Aft travel 6" (15cm). SWIVEL: High tensile aluminum 2-7/8" (7cm) diameter, plastic internal cup. All stainless hardware.
Mfr. No. 22000
459-22000
ORDER NO. 459-22000
SWIVEL MOUNT TOP
360° Positive Lock Swivel Spider Mount Anodized Aluminum Finish • 4 prong spider swivels 360° and locks
positively • Fits all Garelick 2-7/8" (7cm) diameter
STANDARD SERIES STANDARD SERIES – SEAT SLIDE AND SWIVEL
MILLENIUM SERIES
SWIVEL SEAT MOUNT TOP
360° Positive Lock Swivel Spider Mount Silver Powder Coat Finish • Low profile design allows 360° of rotation • Heavy duty anodized aluminum slide plate has standard
5"x12" hole pattern to accommodate standard seat mounting
holes • 360° rotation is regulated by dual locking devices - lift the
positive lock lever to rotate. Drop the lever to lock in place in 10° increments. Secondary twist control offers variable drag adjustment and can be tightened down to lock in place.
• Internal Delrin Bearing Cup provides smooth, gaul-free operation • Silver powder coated finish • Meets ABYC-H31, Type A Standards & Garelick
performance standards ORDER NO. 459-99036 Mfr. No. 99036
459-99036
ORDER NO. 459-75083
Mfr. No. 75083 See Pages 749 & 750
PEDESTAL OPTIONS
ADJUSTABLE HEIGHT STANDARD FRICTION LOCK
• Seat raises or lowers, locks at desired height • 2-7/8" (7cm) diameter stanchion tube, 9" (23cm)
diameter base plate • Anodized protective finish helps prevent saltwater
stanchion pedestal seat bases • High tensile aluminum and all stainless hardware • Anodized aluminum finish ORDER NO. 459-99023 Mfr. No. 99023
LOW PROFILE PEDESTAL
• One piece casting for mounting seats as low as possible (4.75" Overall Height) • Compatible with Garelick Hardware • Provides solid base of support for a variety of seat hardware • 2-7/8" (7cm) diameter smooth stanchion tube, 9.25" (23cm) diameter 6 hole base plate
corrosion and weathering
ORDER NO.
459-75436
459-75437
Mfr. No.
75436
75437
Adjustable Height
12" - 16" (30 - 41 cm)
18" - 23" (46 - 58 cm)
Specifications:
Accepts Seat Slides: 459-22000, 459-75080, 459-75081, 459-75083 Accepts Swivels: 459-99023, 459-99036
ORDER NO. 459-75404 Mfr. No. 75404
