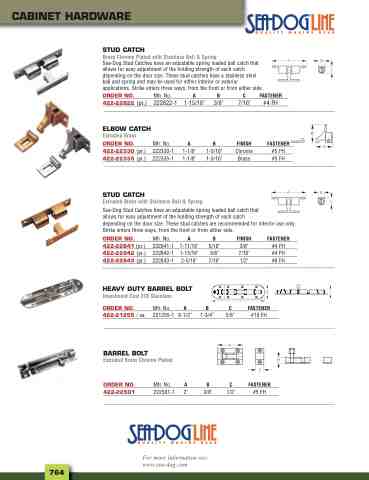

Page 796 - 2025 Parts & Accessories Catalogue

CABINET HARDWARE
ORDER NO. 422-22822 (pr.)
ELBOW CATCH
Extruded Brass
ORDER NO. 422-22330 (pr.) 422-22335 (pr.)
STUD CATCH
Mfr. No. 222822-1
Mfr. No. 222330-1 222335-1
A
1-15/16"
A
1-1/8" 1-1/8"
B
3/8"
B
1-5/16" 1-5/16"
C FASTENER
7/16" #4 FH
FINISH FASTENER
Chrome #5 FH Brass #5 FH
Sea-Dog Stud Catches have an adjustable spring loaded ball catch that allows for easy adjustment of the holding strength of each catch depending on the door size. These stud catches are recommended for interior use only. Strike enters three ways, from the front or from either side.
HEAVY DUTY BARREL BOLT
5/16" 3/8" 3/8" 7/16"
7/16" 1/2"
B C FASTENER
1-3/4” 5/8” #10 FH
B C FASTENER
3/8" 1/2" #5 FH
For more information see: www.sea-dog.com
764
STUD CATCH
Brass Chrome Plated with Stainless Ball & Spring
Sea-Dog Stud Catches have an adjustable spring loaded ball catch that allows for easy adjustment of the holding strength of each catch depending on the door size. These stud catches have a stainless steel ball and spring and may be used for either interior or exterior applications. Strike enters three ways, from the front or from either side.
Extruded Brass with Stainless Ball & Spring
ORDER NO. 422-22841 (pr.) 422-22842 (pr.) 422-22843 (pr.)
Mfr. No. 222841-1 222842-1 222843-1
A
1-11/16" 1-15/16" 2-5/16"
B
FINISH
FASTENER
#4 FH #4 FH #6 FH
Investment Cast 316 Stainless
ORDER NO. Mfr. No. 422-21255 / ea. 221255-1
BARREL BOLT
Extruded Brass Chrome Plated
ORDER NO. Mfr. No. 422-22501 222501-1
A
6-1/2”
A
2"
