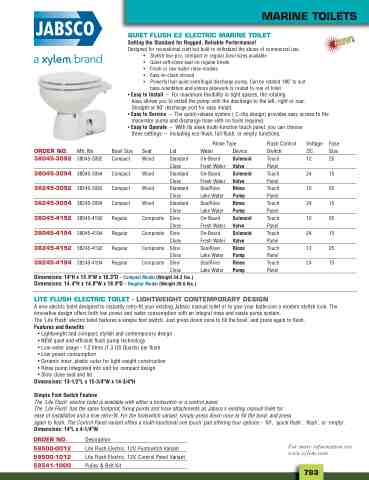

Page 815 - 2025 Parts & Accessories Catalogue

MARINE TOILETS
QUIET FLUSH E2 ELECTRIC MARINE TOILET
Setting the Standard for Rugged, Reliable Performance!
Designed for recreational craft but built to withstand the abuse of commercial use. • Stylish low-pro, compact or regular bowl sizes available • Quiet soft-close seat on regular bowls • Fresh or raw water rinse models
• Easy-to-clean shroud • Powerful but quiet centrifugal discharge pump. Can be rotated 180˚ to suit
base orientation and ensure pipework is routed to rear of toilet • Easy to Install – For maximum flexibility in tight spaces, the rotating
base allows you to install the pump with the discharge to the left, right or rear.
Straight or 90˚ discharge port for easy install. • Easy to Service – The quick-release system ( C-clip design) provides easy access to the
macerator pump and discharge hose with no tools required. • Easy to Operate – With its sleek multi-function touch panel, you can choose
three settings – including eco-flush, full flush, or empty functions.
Rinse Type
Flush Control Switch
Touch Panel
Touch Panel
Touch Panel
Touch Panel
Touch Panel
Touch Panel
Touch Panel
Touch Panel
Voltage Fuse DC Size
12 25
24 15
12 25
24 15
12 25
24 15
12 25
24 15
ORDER NO.
38045-3092
38045-3094
38245-3092
38245-3094
38045-4192
38045-4194
38245-4192
38245-4194
Mfr. No.
38045-3092
38045-3094
38245-3092
38245-3094
38045-4192
38045-4194
38245-4192
38245-4194
Bowl Size
Compact
Compact
Compact
Compact
Regular
Regular
Regular
Regular
Seat Lid
Wood Standard Close
Wood Standard Close
Wood Standard Close
Wood Standard Close
Composite Slow Close
Composite Slow Close
Composite Slow Close
Composite Slow Close
Water
On-Board Fresh Water
On-Board Fresh Water
Sea/River Lake Water
Sea/River Lake Water
On-Board Fresh Water
On-Board Fresh Water
Sea/River Lake Water
Sea/River Lake Water
Device
Solenoid Valve
Solenoid Valve
Rinse Pump
Rinse Pump
Solenoid Valve
Solenoid Valve
Rinse Pump
Rinse Pump
Dimensions: 14"H x 13.9"W x 16.3"D - Compact Model (Weight 34.2 lbs.) Dimensions: 14.4"H x 14.8"W x 18.9"D - Regular Model (Weight 38.6 lbs.)
LITE FLUSH ELECTRIC TOILET - LIGHTWEIGHT CONTEMPORARY DESIGN A new electric toilet designed to instantly retro-fit your existing Jabsco manual toilet or to give your bathroom a modern stylish look. The innovative design offers both low power and water consumption with an integral rinse and waste pump system. The 'Lite Flush' electric toilet features a simple foot switch. Just press down once to fill the bowl, and press again to flush. Features and Benefits
• Lightweight and compact, stylish and contemporary design • NEW quiet and efficient flush pump technology • Low water usage - 1.2 litres (1.3 US Quarts) per flush • Low power consumption
• Ceramic inner, plastic outer for light weight construction • Rinse pump integrated into unit for compact design • Slow close seat and lid
Dimensions: 13-1/2"L x 15-3/4"W x 14-3/4"H
Simple Foot Switch Feature
The 'Lite Flush' electric toilet is available with either a footswitch or a control panel. The 'Lite Flush' has the same footprint, fixing points and hose attachments as Jabsco’s existing manual toilet for ease of installation and a true retro-fit. For the footswitch variant, simply press down once to fill the bowl, and press again to flush. The Control Panel variant offers a multi-functional one touch' pad offering four options - 'fill', 'quick flush', 'flush', or 'empty'. Dimensions: 14"L x 4-1/4"W
ORDER NO.
58500-0012
58500-1012
58541-1000
Description
Lite Flush Electric, 12V, Footswitch Variant
Lite Flush Electric, 12V, Control Panel Variant
For more information see: www.xylem.com
