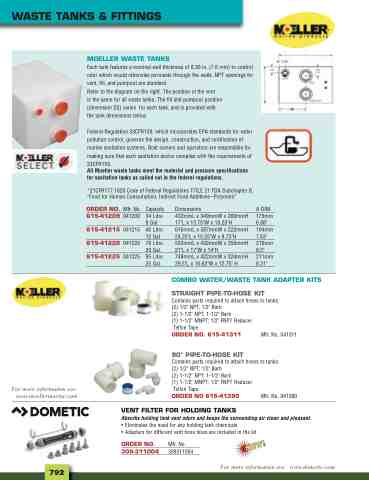

Page 824 - 2025 Parts & Accessories Catalogue

WASTE TANKS & FITTINGS
MOELLER WASTE TANKS
Each tank features a nominal wall thickness of 0.30 in. (7.6 mm) to control odor which would otherwise permeate through the walls. NPT openings for vent, fill, and pumpout are standard. Refer to the diagram on the right. The position of the vent
is the same for all waste tanks. The fill and pumpout position (dimension D2) varies for each tank, and is provided with the tank dimensions below.
Federal Regulation 33CFR159, which incorporates EPA standards for water pollution control, governs the design, construction, and certification of marine sanitation systems. Boat owners and operators are responsible for making sure that each sanitation device complies with the requirements of 33CFR159.
All Moeller waste tanks meet the material and pressure specifications for sanitation tanks as called out in the federal regulations.
*21CFR177.1620 Code of Federal Regulations TITLE 21 FDA Subchapter “Food for Human Consumption, Indirect Food Additives--Polymers”
B,
ORDER NO. Mfr. No.
615-41209 041209
615-41215 041215
615-41220 041220
615-41225 041225
Capacity
34 Litre 9 Gal.
45 Litre 12 Gal.
76 Litre 20 Gal.
95 Litre 25 Gal.
Dimensions
432mmL x 349mmW x 260mmH 17"L x 13.75"W x 10.25"H
616mmL x 387mmW x 222mmH 24.25"L x 15.25"W x 8.75"H
533mmL x 432mmW x 356mmH 21"L x 17"W x 14"H
749mmL x 422mmW x 324mmH 29.5"L x 16.63"W x 12.75" H
A DIM.
175mm 6.88"
194mm 7.63"
216mm 8.5"
211mm 8.31"
COMBO WATER/WASTE TANK ADAPTER KITS
STRAIGHT PIPE-TO-HOSE KIT
Contains parts required to attach hoses to tanks: (2) 1/2" NPT; 1/2" Barb (2) 1-1/2" NPT; 1-1/2" Barb (1) 1-1/2" MNPT; 1/2" FNPT Reducer
Teflon Tape.
ORDER NO. 615-41311
90° PIPE-TO-HOSE KIT
Mfr. No. 041311
Contains parts required to attach hoses to tanks: (2) 1/2" NPT; 1/2" Barb (2) 1-1/2" NPT; 1-1/2" Barb (1) 1-1/2" MNPT; 1/2" FNPT Reducer
For more information see: www.moellermarine.com
Teflon Tape.
ORDER NO 615-41390
VENT FILTER FOR HOLDING TANKS
Mfr. No. 041390
Absorbs holding tank vent odors and keeps the surrounding air clean and pleasant.
• Eliminates the need for any holding tank chemicals • Adapters for different vent hose sizes are included in the kit
ORDER NO. Mfr. No.
309-311004 309311004
For more information see: www.dometic.com
