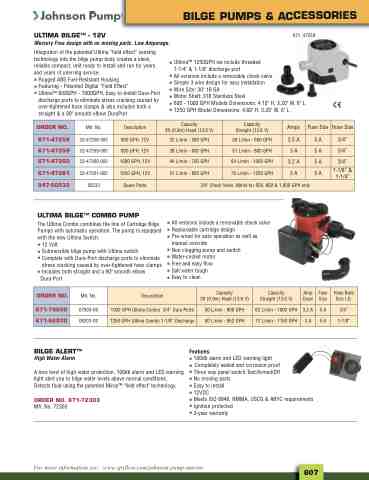

Page 839 - 2025 Parts & Accessories Catalogue

BILGE PUMPS & ACCESSORIES
ULTIMA BILGETM - 12V
Mercury Free design with no moving parts. Low Amperage.
671_47259
Integration of the patented Ultima “field effect“ sensing technology into the bilge pump body creates a sleek, reliable compact, unit ready to install and run for years and years of unerring service.
• Rugged ABS Fuel-Resistant Housing • Featuring - Patented Digital “Field Effect” • UltimaTM 600GPH - 1000GPH, Easy to-install Dura-Port
discharge ports to eliminate stress cracking caused by over-tightened hose clamps & also includes both a straight & a 90o smooth elbow DuraPort
•
• • • • • •
UltimaTM 1250GPH we include threaded 1-1/4" & 1-1/8" discharge port All versions include a removable check valve Simple 3 wire design for easy installation Wire Size: 30" 16 GA Motor Shaft: 316 Stainless Steel 600 - 1000 GPH Models Dimensions: 4.10" H, 3.20" W, 6" L 1250 GPH Model Dimensions: 4.60" H, 3.20" W, 6" L
ORDER NO.
671-47258
671-47259
671-47260
671-47261
847-50533
Mfr. No.
32-47258-003
32-47259-003
32-47260-003
32-47261-002
50533
Description
600 GPH, 12V
800 GPH, 12V
1000 GPH, 12V
1250 GPH, 12V
Spare Parts
Capacity 3ft (0.9m) Head (13.6 V)
32 L/min - 500 GPH
38 L/min - 600 GPH
44 L/min - 700 GPH
51 L/min - 800 GPH
Capacity Straight (13.6 V)
38 L/min - 600 GPH
51 L/min - 800 GPH
64 L/min - 1000 GPH
79 L/min - 1250 GPH
Amps
2.5 A
3 A
3.2 A
3 A
Fuse Size Hose Size
5 A 3/4”
5 A 3/4”
5 A 3/4”
5 A
1-1/8” & 1-1/4”
3/4" Check Valve, Nitrile for 600, 800 & 1,000 GPH only
ULTIMA BILGETM COMBO PUMP
The Ultima Combo combines the line of Cartridge Bilge Pumps with automatic operation. The pump is equipped with the new Ultima Switch. • 12 Volt
• Submersible bilge pump with Ultima switch • Complete with Dura-Port discharge ports to eliminate
stress cracking caused by over-tightened hose clamps • Includes both straight and a 90o smooth elbow
• All versions include a removable check valve • Replaceable cartridge design • Pre-wired for auto operation as well as
Dura-Port
ORDER NO.
671-79030
671-82030
Mfr. No.
07903-00
08203-00
Description
manual override • Non clogging pump and switch • Water-cooled motor • Free and easy flow • Salt water tough • Easy to clean
Capacity 3ft (0.9m) Head (13.6 V)
Capacity Straight (13.6 V)
63 L/min - 1000 GPH
73 L/min - 1150 GPH
Amp Draw
3.2 A
3 A
Fuse Hose Barb Size Size I.D.
5 A 3/4”
5 A 1-1/8”
1000 GPH Ultima Combo 3/4” Dura Ports 50 L/min - 800 GPH
1250 GPH Ultima Combo 1-1/8” Discharge 60 L/min - 952 GPH
BILGE ALERTTM␣
High Water Alarm
A new level of high water protection. 100db alarm and LED warning light alert you to bilge water levels above normal conditions. Detects fluid using the patented MirusTM "field effect" technology.
ORDER NO. 671-72303
Mfr. No. 72303
Features:
• 100db alarm and LED warning light • Completely sealed and corrosion proof • Three way panel switch Test/Armed/Off • No moving parts • Easy to install • 12VDC • Meets ISO 8846, NMMA, USCG & ABYC requirements • Ignition protected • 3-year warranty
For more information see: www.spxflow.com/johnson-pump-marine
