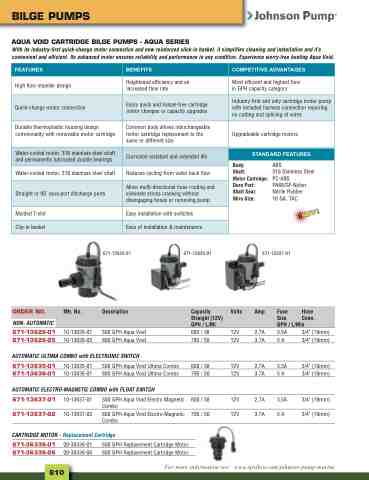

Page 842 - 2025 Parts & Accessories Catalogue

BILGE PUMPS
AQUA VOID CARTRIDGE BILGE PUMPS - AQUA SERIES
With its industry-first quick-change motor connection and new reinforced click-in basket, it simplifies cleaning and installation and it’s convenient and efficient. Its enhanced motor ensures reliability and performance in any condition. Experience worry-free boating Aqua Void.
FEATURES
BENEFITS
COMPETITIVE ADVANTAGES
High flow impeller design
Heightened efficiency and an increased flow rate
Most efficient and highest flow in GPH capacity category
Quick-change motor connection
Enjoy quick and hassel-free cartridge motor changes or capacity upgrades
Industry first and only cartridge motor pump with included harness connection requiring no cutting and splicing of wires
Durable thermoplastic housing design commonality with removable motor cartridge
Common body allows interchangeable motor cartridge replacement to the same or different size
Upgradeable cartridge motors
Water-cooled motor, 316 stainless steel shaft and permanently lubricated double bearings
Corrosion resistant and extended life
STANDARD FEATURES
Body: Shaft: Motor Cartridge: Dura Port: Shaft Seal: Wire Size:
ABS 316 Stainless Steel PC-ABS PA66/GF-Nylon Nitrile Rubber 16 GA, TAC
Water-cooled motor, 316 stainless steel shaft
Reduces cycling from water back flow
Straight or 90˚ dura port discharge ports
Allow multi-directional hose routing and eliminate stress cracking without disengaging hoses or removing pump
Molded T-slot
Easy installation with switches
Clip-in basket
Ease of installation & maintenance
671-13626-01
671-13626-01 10-13626-01 500 GPH Aqua Void
671-13626-05 10-13626-05 800 GPH Aqua Void
AUTOMATIC ULTIMA COMBO with ELECTRONIC SWITCH
671-13635-01 10-13635-01 500 GPH Aqua Void Ultima Combo
671-13636-01 10-13636-01 800 GPH Aqua Void Ultima Combo
AUTOMATIC ELECTRO-MAGNETIC COMBO with FLOAT SWITCH
671-13637-01 10-13637-01 500 GPH Aqua Void Electro Magnetic Combo
671-13637-02 10-13637-02 800 GPH Aqua Void Electro-Magnetic Combo
CARTRIDGE MOTOR - Replacement Cartridge
671-36336-01 09-36336-01 500 GPH Replacement Cartridge Motor
671-36336-06 09-36336-06 800 GPH Replacement Cartridge Motor
671-13635-01
600/38
795/50
600/38
795/50
600/38
795/50
671-13637-01
12V 2.7A 3.5A
12V 3.7A 5A
12V 2.7A 3.5A
12V 3.7A 5A
12V 2.7A 3.5A
12V 3.7A 5A
3/4" (19mm)
3/4" (19mm)
3/4" (19mm)
3/4" (19mm)
3/4" (19mm)
3/4" (19mm)
ORDER NO. Mfr. No. Description Capacity Straight (12V)
GPH / L/Mi
Volts
Amp Fuse Hose Size Conn.
GPH / L/Min
NON- AUTOMATIC
For more information see: www.spxflow.com/johnson-pump-marine
810
