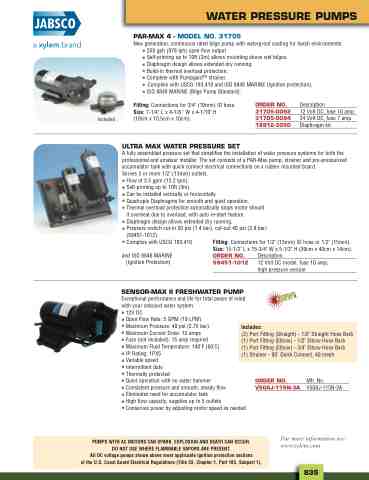

Page 867 - 2025 Parts & Accessories Catalogue

WATER PRESSURE PUMPS
PAR-MAX 4 - MODEL NO. 31705 New generation, continuous rated bilge pump with waterproof coating for harsh environments.
• 258 gph (978 lph) open flow output • Self-priming up to 10ft (3m) allows mounting above wet bilges. • Diaphragm design allows extended dry running. • Build-in thermal overload protection. • Complete with PumpgardTM strainer. • Complies with USCG 183.410 and ISO 8846 MARINE (Ignition protection). • ISO 8849 MARINE (Bilge Pump Standard).
Included
Fitting: Connections for 3/4" (19mm) ID hose. Size: 7-1/4" L x 4-1/8 " W x 4-1/10" H (18cm x 10.5cm x 10cm).
ULTRA MAX WATER PRESSURE SET
ORDER NO.
31705-0092
31705-0094
18912-3050
Description
12 Volt DC, fuse 10 amp.
24 Volt DC, fuse 7 amp.
Diaphragm kit
A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a PAR-Max pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a rubber mounted board. Serves 3 or more 1/2" (13mm) outlets.
• Flow of 3.5 gpm (13.2 lpm). • Self-priming up to 10ft (3m). • Can be installed vertically or horizontally. • Quadruple Diaphragms for smooth and quiet operation. • Thermal overload protection automatically stops motor should
it overheat due to overload, with auto re-start feature. • Diaphragm design allows extended dry running. • Pressure switch cut-in 20 psi (1.4 bar), cut-out 40 psi (2.8 bar)
(59451-1012). • Complies with USCG 183.410
and ISO 8846 MARINE (Ignition Protection)
Fitting: Connections for 1/2" (13mm) ID hose or 1/2" (15mm). Size: 15-1/2" L x 15-3/4" W x 5-1/2" H (39cm x 40cm x 14cm).
ORDER NO.
59451-1012
Description
12 Volt DC model, fuse 10 amp, high pressure version
ORDER NO. Mfr. No.
V50AJ-115N-3A V50AJ-115N-3A
For more information see: www.xylem.com
SENSOR-MAX II FRESHWATER PUMP
Exceptional performance and life for total peace of mind with your onboard water system. • 12V DC • Open Flow Rate: 5 GPM (19 LPM)
• Maximum Pressure: 40 psi (2.75 bar) • Maximum Current Draw: 12 amps • Fuse (not included): 15 amp required • Maximum Fluid Temperature: 140˚F (60˚C) • IP Rating: 1PX5
• Variable speed • Intermittent duty • Thermally protected • Quiet operation with no water hammer • Consistent pressure and smooth, steady flow • Eliminates need for accumulator tank • High flow capacity, supplies up to 5 outlets • Conserves power by adjusting motor speed as needed
Includes:
(2) Port Fitting (Straight) - 1/2" Straight Hose Barb (1) Port Fitting (Elbow) - 1/2" Elbow Hose Barb (1) Port Fitting (Elbow) - 3/4" Elbow Hose Barb (1) Strainer - 90˚ Quick Connect, 40 mesh
PUMPS WITH AC MOTORS CAN SPARK. EXPLOSION AND DEATH CAN OCCUR. DO NOT USE WHERE FLAMMABLE VAPORS ARE PRESENT. All DC voltage pumps shown above meet applicable ignition protection sections of the U.S. Coast Guard Electrical Regulations (Title 33, Chapter 1, Part 183, Subpart 1).
