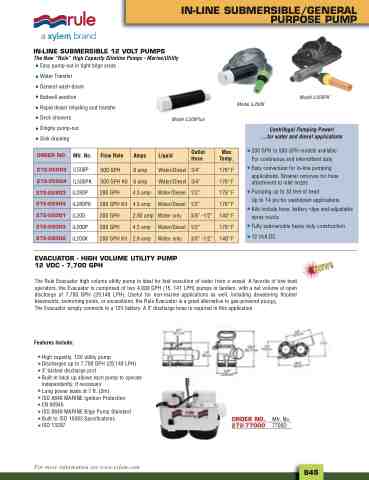

Page 877 - 2025 Parts & Accessories Catalogue

IN-LINE SUBMERSIBLE 12 VOLT PUMPS
The New “Rule” High Capacity Slimline Pumps - Marine/Utility
• Easy pump-out in tight bilge areas • Water Transfer • General wash-down • Baitwell aeration
• Rapid diesel refueling and transfer • Deck showers • Dinghy pump-out • Sink draining
IN-LINE SUBMERSIBLE/GENERAL PURPOSE PUMP
Model iL500PK
Model iL200K
Model iL500Plus
ORDER NO.
272-05003 272-05004 272-02803 272-02804 272-02001 272-02003 272-02002
Mfr. No.
iL500P iL500PK
iL280P iL280PK iL200 iL200P iL200K
Flow Rate
500 GPH 500 GPH Kit
Amps
6 amp 6 amp
4.5 amp 4.5 amp 2.80 amp 4.5 amp 2.8 amp
Liquid
Outlet Hose
Max Temp.
176o F 176o F 176o F 176o F 140o F 176o F 140o F
Centrifugal Pumping Power! ...for water and diesel applications
• 200 GPH to 500 GPH models available For continuous and intermittent duty • Easy conversion for in-line pumping
applications. Strainer removes for hose attachment to inlet nozzle
• Pumping up to 32 feet of head Up to 14 psi for washdown applications
• Kits include hose, battery clips and adjustable spray nozzle
• Fully submersible heavy duty construction • 12 Volt DC
280 GPH 280 GPH 200 GPH 200 GPH 200 GPH
Kit
Kit
Water/Diesel 3/4” Water/Diesel 3/4” Water/Diesel 1/2” Water/Diesel 1/2”
Water only 3/8” -1/2” Water/Diesel 1/2” Water only 3/8” -1/2”
EVACUATOR - HIGH VOLUME UTILITY PUMP 12 VDC - 7,700 GPH
The Rule Evacuator high volume utility pump is ideal for fast evacution of water from a vessel. A favorite of tow boat operators, the Evacuator is comprised of two 4,000 GPH (15, 141 LPH) pumps in tandem, with a net volume at open discharge of 7,700 GPH (29,148 LPH). Useful for non-marine applications as well, including dewatering flooded basements, swimming pools, or excavations, the Rule Evacuator is a great alternative to gas-powered pumps.
The Evacuator simply connects to a 12V battery. A 3" discharge hose is required in this application.
Features Include:
• High capacity, 12V utility pump • Discharges up to 7,700 GPH (29,148 LPH) • 3" barbed discharge port • Built-in back up allows each pump to operate
independently, if necessary • Long power leads at 7 ft. (2m) • ISO 8846 MARINE Ignition Protection • EN 60945 • ISO 8849 MARINE Bilge Pump Standard • Built to ISO 15083 Specifications • ISO 13297
ORDER NO.
272-77000
Mfr. No.
7700D
For more information see www.xylem.com
845
