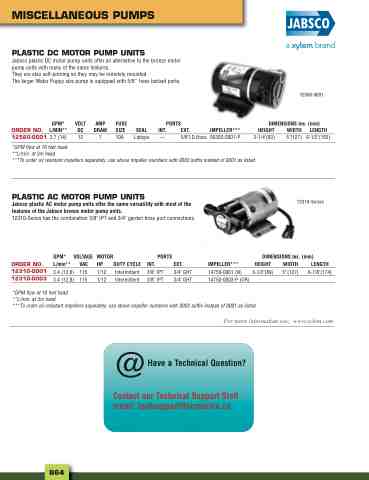

MISCELLANEOUS PUMPS
PLASTIC DC MOTOR PUMP UNITS
Jabsco plastic DC motor pump units offer an alternative to the bronze motor pump units with many of the same features. They are also self-priming so they may be remotely mounted. The larger Water Puppy size pump is equipped with 5/8'' hose barbed ports.
GPM* ORDER NO. L/MIN**
12560-0001 3.7 (14)
VOLT AMP FUSE DC DRAW SIZE
12 7 10A
PORTS INT. EXT.
12560-0001
DIMENSIONS Ins. (mm)
— 5/8"I.D.Hose 06303-0001-P
WIDTH LENGTH
5"(127) 6-1/2"(165)
12310-Series
DIMENSIONS Ins. (mm)
*GPM flow at 10 feet head. **L/min. at 3m head. ***To order oil resistant impellers separately, use above impeller numbers with 0003 suffix instead of 0001 as listed.
PLASTIC AC MOTOR PUMP UNITS
Jabsco plastic AC motor pump units offer the same versatility with most of the features of the Jabsco bronze motor pump units. 12310-Series has the combination 3/8" IPT and 3/4" garden hose port connections.
GPM* VOLTAGE
SEAL
Liptype
IMPELLER***
HEIGHT
3-1/4"(83)
MOTOR VAC HP DUTY CYCLE
115 1/12 Intermittent
115 1/12 Intermittent
PORTS INT. EXT.
3/8" IPT 3/4" GHT
3/8" IPT 3/4" GHT
ORDER NO.
12310-0001
12310-0003
L/min**
3.4 (12,8)
3.4 (12,8)
IMPELLER***
14750-0001 (N)
14750-0003-P (OR)
HEIGHT
3-1/2"(89)
WIDTH
5”(127)
LENGTH
6-7/8"(174)
*GPM flow at 10 feet head. **L/min. at 3m head. ***To order oil resistant impellers separately, use above impeller numbers with 0003 suffix instead of 0001 as listed.
For more information see; www.xylem.com
