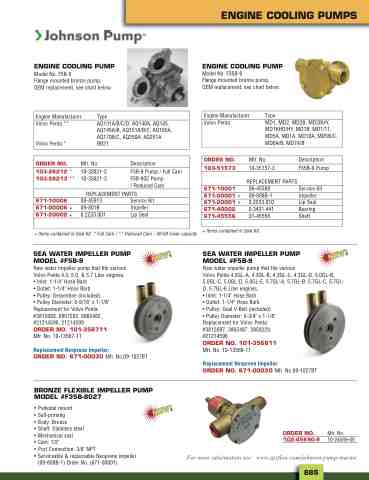

Page 917 - 2025 Parts & Accessories Catalogue

ENGINE COOLING PUMPS
ENGINE COOLING PUMP
Model No. F5B-9 Flange mounted bronze pump. OEM replacement, see chart below.
Engine Manufacturer Type
Volvo Penta ** AQ131A/B/C/D, AQ140A, AQ145, AQ145A/B, AQ151A/B/C, AQ165A,
AQ170B/C, AQ250A, AQ251A Volvo Penta * BB21
ENGINE COOLING PUMP
Model No. F35B-9 Flange mounted bronze pump. OEM replacement, see chart below.
Engine Manufacturer Type
Volvo Penta MD1, MD2, MD2B, MD2BHY, MD1KHD/HY, MD1B, MD1/11,
MD5A, MD1A, MD10A, MD5B/C, MD6A/B, MD7A/B
ORDER NO. Mfr. No. Description
ORDER NO. Mfr. No. Description
103-51573 10-35157-3 F35B-9 Pump
103-26212 * 10-32621-2 F5B-9 Pump / Full Cam 103-26213 ** 10-32621-3 F5B-902 Pump / Reduced Cam
REPLACEMENT PARTS
671-10001 09-45589 Service Kit
REPLACEMENT PARTS
671-00001 + 09-808B-1 Impeller
671-10006 09-45913 Service Kit
671-20001 + 0.2233.010 Lip Seal
671-00006 + 09-801B Impeller
671-40002 0.3431.441 Bearing
671-20002 + 0.2233.001 Lip Seal
671-45556 01-45556 Shaft
+ Items contained in Seal Kit. * Full Cam / ** Reduced Cam - 40-50 lower capacity
+ Items contained in Seal Kit.
SEA WATER IMPELLER PUMP MODEL #F5B-9 Raw water impeller pump that fits various Volvo Penta 4.3, 5.0, & 5.7 Liter engines.
• Inlet: 1-1/4" Hose Barb • Outlet: 1-1/4" Hose Barb • Pulley: Serpentine (included) • Pulley Diameter: 6-9/16" x 1-1/8" Replacement for Volvo Penta: #3812693, 6857202, 6862482, #21214596, 21214599 ORDER NO. 101-356711 Mfr. No. 10-13567-11
Replacement Neoprene Impeller:
ORDER NO. 671-00030 Mfr. No.09-1027BT
BRONZE FLEXIBLE IMPELLER PUMP MODEL #F35B-8027
• Pedestal mount • Self-priming • Body: Bronze • Shaft: Stainless steel • Mechanical seal
• Cam: 1/2" • Port Connection: 3/8" NPT • Serviceable & replaceable Neoprene impeller
SEA WATER IMPELLER PUMP MODEL #F5B-9 Raw water impeller pump that fits various Volvo Penta 4.3GL-A, 4.3GL-B, 4.3GL-C, 4.3GL-D, 5.0GL-B, 5.0GL-C, 5.0GL-D, 5.0GL-E, 5.7GL-A, 5.7GL-B, 5.7GL-C, 5.7GL- D, 5.7GL-E Liter engines.
• Inlet: 1-1/4" Hose Barb • Outlet: 1-1/4" Hose Barb • Pulley: Dual V-Belt (included) • Pulley Diameter: 6-3/4" x 1-1/8" Replacement for Volvo Penta: #3812697, 3862487, 3858229, #21214596 ORDER NO. 101-356811 Mfr. No. 10-13568-11
Replacement Neoprene Impeller:
ORDER NO. 671-00030 Mfr. No.09-1027BT
ORDER NO.
102-45690-9
Mfr. No.
10-24569-09
(09-808B-1) Order No. (671-00001)
For more information see: www.spxflow.com/johnson-pump-marine
885
