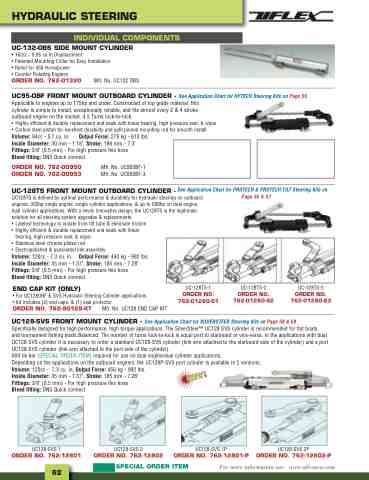

Page 94 - 2025 Parts & Accessories Catalogue

HYDRAULIC STEERING
INDIVIDUAL COMPONENTS
UC-132-OBS SIDE MOUNT CYLINDER
• 163cc / 9.95 cu.in Displacement • Patented Mounting Collar for Easy Installation • Rated for 450 Horsepower • Counter Rotating Engines ORDER NO. 762-01320 Mfr. No. UC132 OBS
UC95-OBF FRONT MOUNT OUTBOARD CYLINDER - See Application Chart for HYTECH Steering Kits on Page 55 Applicable to engines up to 175hp and under. Constructed of top grade material, this cylinder is simple to install, exceptionally reliable, and fits almost every 2 & 4 stroke outboard engine on the market. 4.5 Turns lock-to-lock.
• Highly efficient & durable replacement end seals with linear bearing, high pressure seal, & wiper • Carbon steel piston for excellent durability and split pinned mounting rod for smooth install Volume: 94cc - 5.7 cu. in. Output Force: 278 kg - 613 lbs. Inside Diameter: 30 mm - 1.18", Stroke: 186 mm - 7.3"
Fittings: 3/8" (9,5 mm) - For high pressure flex hose Bleed fitting: DN5 Quick connect
ORDER NO. 762-00950 Mfr. No. UC950BF-1 ORDER NO. 762-00953 Mfr. No. UC950BF-3
UC-128TS FRONT MOUNT OUTBOARD CYLINDER - See Application Chart for PROTECH & PROTECH TILT Steering Kits on
UC128TS is defined by optimal performance & durability for hydraulic steering on outboard engines. 300hp single engine, single cylinder applications, & up to 600hp on dual engine, dual cylinder applications. With a newly innovative design, the UC128TS is the legitimate solution for all steering system upgrades & replacements.
Page 56 & 57
UC-128TS-2
ORDER NO. 762-01280-S2
• Latelest technology to isolate from tilt tube & eliminate friction • Highly efficient & durable replacement end seals with linear
bearing, high pressure seal, & wiper • Stainless steel chrome plated rod • Electropolished & passivated link assembly Volume: 120cc - 7.3 cu. in. Output Force: 450 kg - 992 lbs. Inside Diameter: 35 mm - 1.37", Stroke: 185 mm - 7.28" Fittings: 3/8" (9,5 mm) - For high pressure flex hose Bleed fitting: DN5 Quick connect
END CAP KIT (ONLY)
• For UC128OBF & SVS Hydraulic Steering Cylinder applications. • Kit includes (2) end caps, & (1) seal protector. ORDER NO. 762-90128-KT Mfr. No. UC128 END CAP KIT
UC-128TS-1
ORDER NO. 762-01280-S1
UC-128TS-3
ORDER NO. 762-01280-S3
UC128-SVS FRONT MOUNT CYLINDER - See Application Chart for SILVERSTEER Steering Kits on Page 58 & 59 Specifically designed for high performance, high torque applications. The SilverSteerTM UC128 SVS cylinder is recommended for flat boats, and tournament fishing boats.Balanced: The number of turns lock-to-lock is equal port to starboard or vice-versa. In the applications with dual UC128-SVS cylinder it is necessary to order a standard UC128-SVS cylinder (link arm attached to the starboard side of the cylinder) and a port UC128-SVS cylinder (link arm attached to the port side of the cylinder). A94 tie bar (SPECIAL ORDER ITEM) required for use on dual engine/dual cylinder applications. Depending on the applications on the outboard engines, the UC128P-SVS port cylinder is available in 2 versions: Volume: 120cc - 7.3 cu. in, Output Force: 450 kg - 992 lbs. Inside Diameter: 35 mm - 1.37", Stroke: 185 mm - 7.28" Fittings: 3/8" (9,5 mm) - For high pressure flex hose Bleed fitting: DN5 Quick connect
UC128-SVS 1 UC128-SVS 2
ORDER NO. 762-12801 ORDER NO. 762-12802
UC128-SVS 1P
ORDER NO. 762-12801-P
UC128-SVS 2P
ORDER NO. 762-12802-P
SPECIAL ORDER ITEM For more information see: www.uflexusa.com
62
