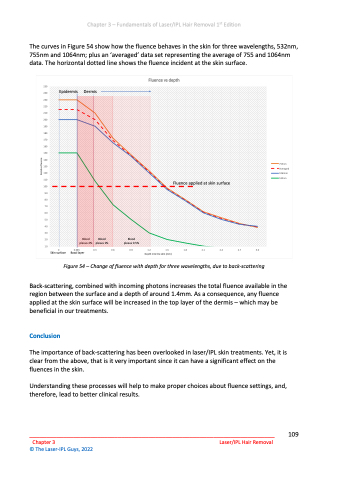

The curves in Figure 54 show how the fluence behaves in the skin for three wavelengths, 532nm, 755nm and 1064nm; plus an ‘averaged’ data set representing the average of 755 and 1064nm data. The horizontal dotted line shows the fluence incident at the skin surface.
Figure 54 – Change of fluence with depth for three wavelengths, due to back-scattering
Back-scattering, combined with incoming photons increases the total fluence available in the region between the surface and a depth of around 1.4mm. As a consequence, any fluence applied at the skin surface will be increased in the top layer of the dermis – which may be beneficial in our treatments.
Conclusion
The importance of back-scattering has been overlooked in laser/IPL skin treatments. Yet, it is clear from the above, that is it very important since it can have a significant effect on the fluences in the skin.
Understanding these processes will help to make proper choices about fluence settings, and, therefore, lead to better clinical results.
