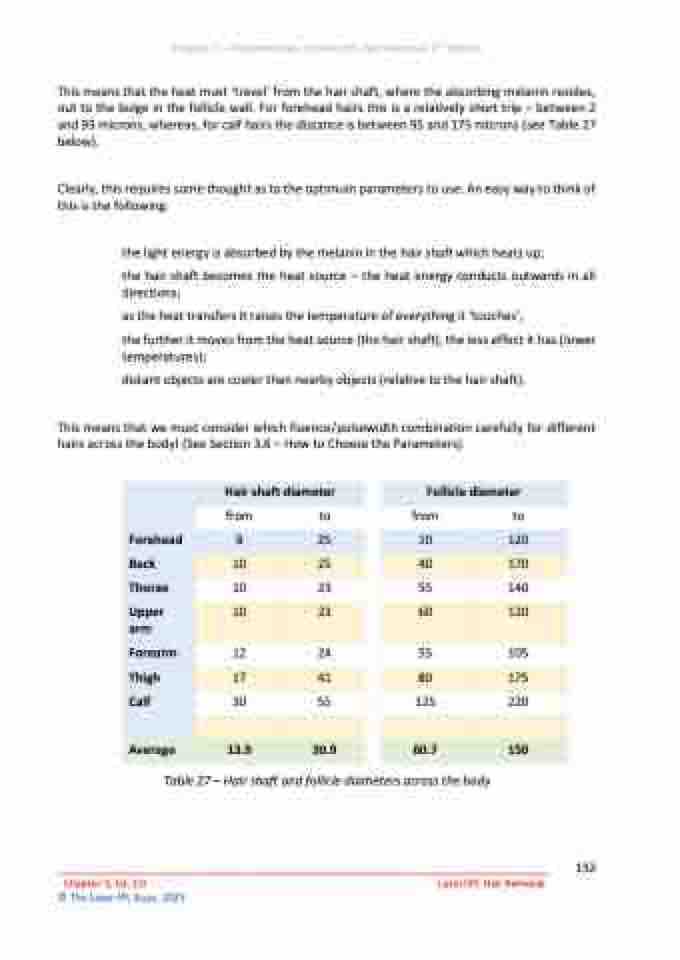

Page 152 - Chapter 3 - Laser/IPL Hair Removal

Chapter 3 – Fundamentals of Laser/IPL Hair Removal 2nd Edition
This means that the heat must ‘travel’ from the hair shaft, where the absorbing melanin resides, out to the bulge in the follicle wall. For forehead hairs this is a relatively short trip – between 2 and 95 microns, whereas, for calf hairs the distance is between 95 and 175 microns (see Table 27 below).
Clearly, this requires some thought as to the optimum parameters to use. An easy way to think of this is the following:
the light energy is absorbed by the melanin in the hair shaft which heats up;
the hair shaft becomes the heat source – the heat energy conducts outwards in all directions;
as the heat transfers it raises the temperature of everything it ‘touches’;
the further it moves from the heat source (the hair shaft), the less effect it has (lower temperatures);
distant objects are cooler than nearby objects (relative to the hair shaft).
This means that we must consider which fluence/pulsewidth combination carefully for different hairs across the body! (See Section 3.6 – How to Choose the Parameters).
Hair shaft diameter
Follicle diameter
from
to
from
to
Forehead
8
25
10
120
Back
10
25
40
170
Thorax
10
23
55
140
Upper
arm
10
23
60
120
Forearm
12
24
55
105
Thigh
17
41
80
175
Calf
30
55
125
220
Average
13.9
30.9
60.7
150
Table 27 – Hair shaft and follicle diameters across the body
________________________________________________________________________ 152 Chapter 3, Ed. 2.0 Laser/IPL Hair Removal
© The Laser-IPL Guys, 2025
